BTIC 200 500PSI MED CARBON DIOXIDE

The Exploded Liquid Cylinder Diagrams offer a fast and straightforward method to identify the correct parts that correspond to the specific tank model you are working on!

How To Use:

Begin by choosing the Liquid Cylinder Brand you are working with. Next, select the Model, followed by the Pressure. Finally, choose the Industry & Gas Service relevant to the Liquid Cylinder you need.

Once you have made these selections, scroll down to the diagram or refer to the right-hand table to locate the parts you require.

The interactive diagram shown is a guide, as your tank may have undergone previous repairs that utilized different parts than those displayed.

 Use this diagram in conjunction with your tank to confirm the parts you need.

 Please contact Customer Service with any questions and/or concerns.

Brand

Model

Pressure

Industry & Gas Service

BTIC 200 500PSI MED CO2
Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel Tamper Proof CGA Connection, CGA 320 Tamper Proof CGA Connection, CGA 320, REGO Lok Kit Valve, 3/8″ FNPT, 2″ Tube, Blue Handwheel Tamper Proof CGA Connection, CGA 622 Tamper Proof CGA Connection, CGA 622 Tamper Proof CGA Connection, CGA 295 Tamper Proof CGA Connection, CGA 295 Tamper Proof CGA Connection, CGA 295, REGO Lok Kit Tamper Proof CGA Connection, CGA 295, REGO Lok Kit Elbow 45, 3/8″ ODT x 1/4″ MNPT, Brass Elbow 45, 3/8″ ODT x 1/4″ MNPT, Brass Copper Tube, 3/8″ x 7″ Copper Tube, 3/8″ x 7″ Fitting, 3/8″ ODT x 1/4″ MNPT, Brass Fitting, 3/8″ ODT x 1/4″ MNPT, Brass Regulator Cryo, Combo, 300 psi, 1/4" FNPT, TW style Elbow 45, MNPT 1/4″ x MNPT 3/8″, Brass Valve, 3/8″ FNPT, 1″ Tube, Silver Handwheel Valve, 3/8″ FNPT, 2″ Tube, Green Handwheel Cross, 1/4″ FNPT, Brass Gauge, Center Back Mount, 2″, 600 psi, 1/4″ MNPT Liquid Cylinder Safety Disk, 500 psi (Sold in Packs of 50) Pressure Relief Valve, 500 PSI, 1/4″ MNPT Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass Safety Head Burst Disc, Range 665-700 PSIG, 1/4″ MNPT Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50) Lock Washer, 1/4", Split (Sold in Packs of 50) Sight Gauge Protector, Clear, VHP, TW style Sight Gauge Protector, Short, Clear Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, TW Style Snap-On Indicator CO2, TW style Gasket for TW Tanks Float Rod Kit, 46" Float Rod and Closed Threaded Eyelet, TW Style Level-Eye Kit, 54" Wand & Head, TW Style Cap Annular Space, 2″, Polyethylene Cap Annular Space, 1 3/4″, Polyethylene Labels, Liquid Cylinder Valve, Gas, pack 50 Labels, Liquid Cylinder Valve, Liquid, pack 50 Labels, Liquid Cylinder Valve, Pressure Builder, pack 50 Labels, Liquid Cylinder Valve, Vent, pack 50

Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel

Tamper Proof CGA Connection, CGA 320

Tamper Proof CGA Connection, CGA 320, REGO Lok Kit

Valve, 3/8″ FNPT, 2″ Tube, Blue Handwheel

Tamper Proof CGA Connection, CGA 622

Tamper Proof CGA Connection, CGA 622

Tamper Proof CGA Connection, CGA 295

Tamper Proof CGA Connection, CGA 295

Tamper Proof CGA Connection, CGA 295, REGO Lok Kit

Tamper Proof CGA Connection, CGA 295, REGO Lok Kit

Elbow 45, 3/8″ ODT x 1/4″ MNPT, Brass

Elbow 45, 3/8″ ODT x 1/4″ MNPT, Brass

Copper Tube, 3/8″ x 7″

Copper Tube, 3/8″ x 7″

Fitting, 3/8″ ODT x 1/4″ MNPT, Brass

Fitting, 3/8″ ODT x 1/4″ MNPT, Brass

Regulator Cryo, Combo, 300 psi, 1/4" FNPT, TW style

Elbow 45, MNPT 1/4″ x MNPT 3/8″, Brass

Valve, 3/8″ FNPT, 1″ Tube, Silver Handwheel

Valve, 3/8″ FNPT, 2″ Tube, Green Handwheel

Cross, 1/4″ FNPT, Brass

Gauge, Center Back Mount, 2″, 600 psi, 1/4″ MNPT

Liquid Cylinder Safety Disk, 500 psi (Sold in Packs of 50)

Pressure Relief Valve, 500 PSI, 1/4″ MNPT

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass

Safety Head Burst Disc, Range 665-700 PSIG, 1/4″ MNPT

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

Lock Washer, 1/4", Split (Sold in Packs of 50)

Sight Gauge Protector, Clear, VHP, TW style

Sight Gauge Protector, Short, Clear

Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, TW Style

Snap-On Indicator CO2, TW style

Gasket for TW Tanks

Float Rod Kit, 46" Float Rod and Closed Threaded Eyelet, TW Style

Level-Eye Kit, 54" Wand & Head, TW Style

Cap Annular Space, 2″, Polyethylene

Cap Annular Space, 1 3/4″, Polyethylene

Labels, Liquid Cylinder Valve, Gas, pack 50

Labels, Liquid Cylinder Valve, Liquid, pack 50

Labels, Liquid Cylinder Valve, Pressure Builder, pack 50

Labels, Liquid Cylinder Valve, Vent, pack 50

Part Number
Description
Price
  • 1 CP-VLV-38F-314T-GR Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel
  • 2A CP-TP-CGA320 Tamper Proof CGA Connection, CGA 320

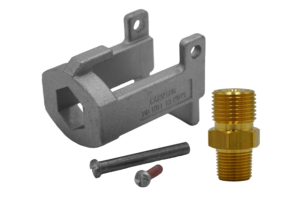

  • 2B CP-TP-CGA320-R Tamper Proof CGA Connection, CGA 320, REGO-Lok Kit
  • 3 CP-VLV-38F-2T-BL Valve, 3/8" FNPT, 2" Tube, Blue Handwheel
  • 4A CP-TP-CGA622 Tamper Proof CGA Connection, CGA 622

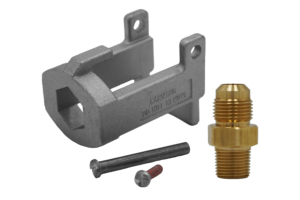

  • 4B CP-TP-CGA295 Tamper Proof CGA Connection, CGA 295
  • 4C CP-TP-CGA295-R Tamper Proof CGA Connection, CGA 295, REGO-Lok Kit
  • 5 CP-ELB-45-38OD-14M-BR Elbow 45, 3/8" ODT x 1/4" MNPT, Brass
  • 6 CP-TUBE-COPPER-38-7 Copper Tube, 3/8″ x 7″
  • 7 CP-FIT-38OD-14M-BR Fitting, 3/8" ODT x 1/4" MNPT, Brass
  • 8 CP-COMBO-HP-14-H Regulator Cryo, Combo, High Pressure, Spring range 150 - 350 psi, 1/4" FNPT, Set point 300 psi, H Style, RegO
  • 9 CP-ELB-45-14M-38M-BR Elbow 45, 1/4" MNPT x 3/8" MNPT, Brass
  • 10 CP-VLV-38F-2T-SILVER Valve, 3/8" FNPT, 2.125" Tube, Silver Handwheel
  • 11 CP-VLV-38F-2T-GR Valve, 3/8" FNPT, 2" Tube, Green Handwheel
  • 12 CP-CROSS-14F-BR Cross, 1/4" FNPT, Brass
  • 13 CP-G-CBM-600-14M Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT
  • 14 CP-LCSD-500 Liquid Cylinder Safety Disk, 500 psi (Sold in Packs of 50)
  • 15 CP-PRV-500-14 Pressure Relief Valve, 500 PSI, 1/4" MNPT
  • 16 CP-ELB-90-14F-14M-BR Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass
  • 17 CP-SH-VHP-14 Safety Head Burst Disc, Range 665-700 PSIG, 1/4" MNPT
  • 18 CP-SCREW-14-20-SS Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)
  • 19 CP-LKWSH-14 Lock Washer, 1/4", Split (Sold in Packs of 50)
  • 20A CP-SGP-CL-NS Sight Gauge Protector, Clear, Neriki Style
  • 20B CP-SGP-SHORT-CL Sight Gauge Protector, Short, Clear
  • 21 CP-FLRD-LL-KIT-NS Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, Neriki Style
  • 22 CP-SOI-CO2-NS Snap-On Indicator CO2, Neriki style
  • 23 CP-GSK-NS Gasket, Neriki-style
  • 24A CP-FLRD-KIT-46-NS Float Rod Kit, 46" Float Rod and Closed Threaded Eyelet, Neriki Style
  • 24B CP-LEP-KIT-54-NS Level-Eye Pro Kit, 54" Wand & Head, Neriki Style
  • 25 CP-CAP-2 Cap Annular Space, 2″, Polyethylene
  • 26 CP-CAP-134 Cap Annular Space, 1 3/4″, Polyethylene
  • 27 CP-LBL-GAS Labels, Liquid Cylinder Valve, Gas, 50 Pack
  • 28 CP-LBL-LIQ Labels, Liquid Cylinder Valve, Liquid, 50 Pack
  • 29 CP-LBL-PB Labels, Liquid Cylinder Valve, Pressure Builder, 50 Pack
  • 30 CP-LBL-VENT Labels, Liquid Cylinder Valve, Vent, 50 Pack
