CRYO-CYL 80 HP IND NITROUS OXIDE

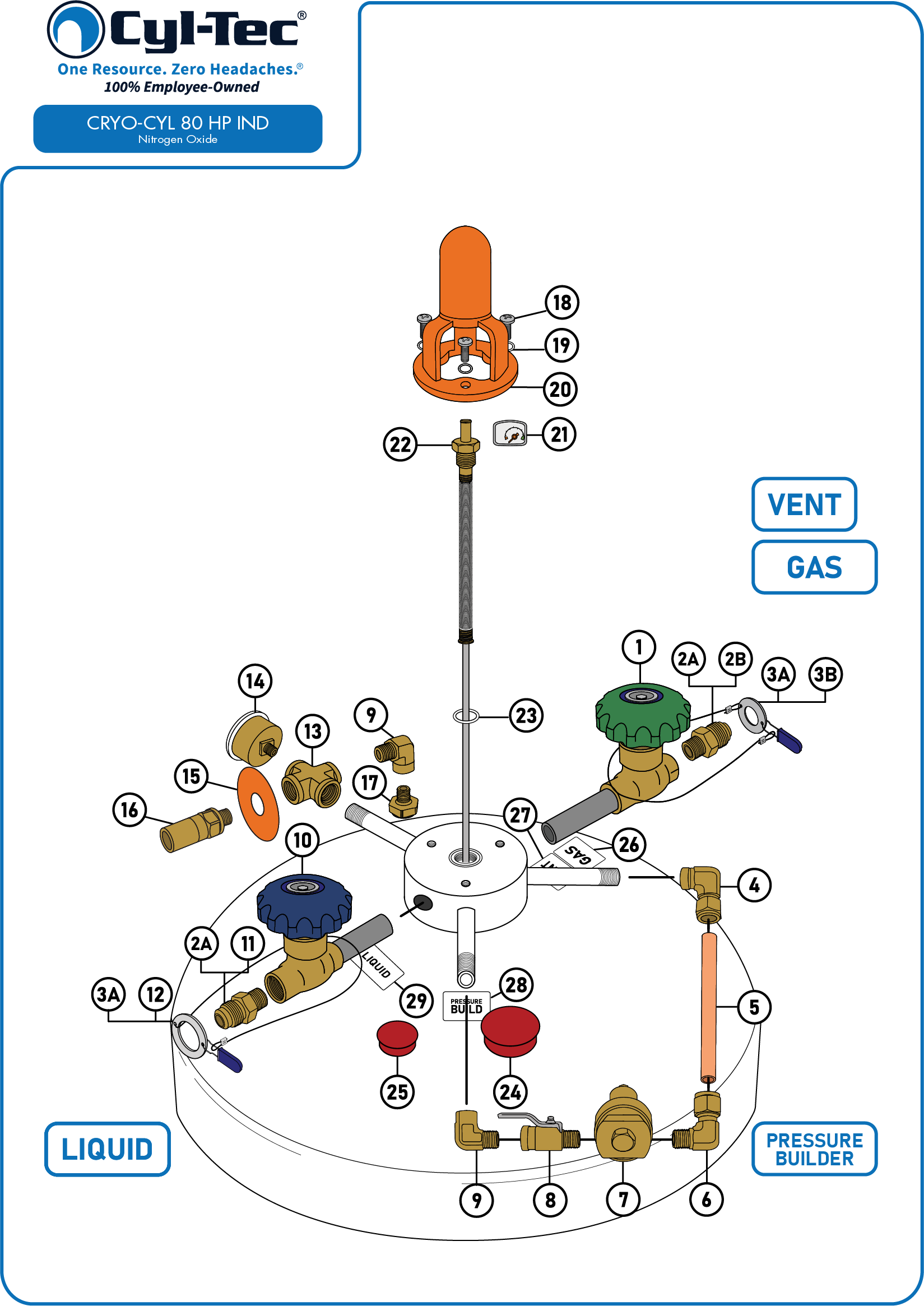

The Exploded Liquid Cylinder Diagrams offer a fast and straightforward method to identify the correct parts that correspond to the specific tank model you are working on!

How To Use:

Begin by choosing the Liquid Cylinder Brand you are working with. Next, select the Model, followed by the Pressure. Finally, choose the Industry & Gas Service relevant to the Liquid Cylinder you need.

Once you have made these selections, scroll down to the diagram or refer to the right-hand table to locate the parts you require.

The interactive diagram shown is a guide, as your tank may have undergone previous repairs that utilized different parts than those displayed.

 Use this diagram in conjunction with your tank to confirm the parts you need.

 Please contact Customer Service with any questions and/or concerns.

Brand

Model

Pressure

Industry & Gas Service

CRYO-CYL 80 HP IND N2O
Valve, 3/8″ FNPT, 3.25″ Tube, Green Handwheel Fitting CGA 624 Liquid/Vent, 3/8" MNPT, Brass Fitting CGA 295 Liquid/Vent, 3/8" MNPT, Brass Elbow 90, 3/8" ODT x 1/4" FNPT, Brass Copper Tube, 3/8" x 7" Elbow 90, 3/8″ ODT x 1/4″ MNPT, Brass Regulator Cryo, PB, 300 psi, ¼" FNPT Ball Valve, 1/4″ MNPT x 1/4″ FNPT 2-Way, Brass, Silver Handle Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass Valve, 3/8" FNPT, 2" Tube, Blue Handwheel Fitting CGA 326 Liquid/Vent, 3/8" MNPT, Brass Fitting CGA 624 Liquid/Vent, 3/8" MNPT, Brass Cross, 1/4" FNPT, Brass Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50) Pressure Relief Valve, 350 PSI, 1/4" MNPT Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50) Lock Washer, 1/4", Split (Sold in Packs of 50) Sight Gauge Protector, Orange, HP, Chart style Snap-On Indicator Standard, Chart style Float Rod Liquid Level Kit, 29.5" Float Rod, Spring, and Brass Indicator, Chart Style O-Ring for MVE Tanks Cap Annular Space, 1 3/4″, Polyethylene Cap Pumpout, 1 3/16″, Polyethylene Labels, Liquid Cylinder Valve, Gas, Pack 50 Labels, Liquid Cylinder Valve, Vent, Pack 50 Labels, Liquid Cylinder Valve, Pressure Builder, Pack 50 Labels, Liquid Cylinder Valve, Liquid, Pack 50 Cable Restraint Kit, X-Large Washer, CGA622/CGA624 Cable Restraint Kit, Small Washer, CGA295 Cable Restraint Kit, X-Large Washer, CGA622/CGA624 Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540

Valve, 3/8″ FNPT, 3.25″ Tube, Green Handwheel

Part Information

Part #
CP-VLV-38F-314T-GR

Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel


Add to quote

Fitting CGA 624 Liquid/Vent, 3/8" MNPT, Brass

Part Information

No Image

Part # CP-CGA624-38-BR

Fitting CGA 624 Liquid/Vent, 3/8" MNPT, Brass

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Fitting CGA 295 Liquid/Vent, 3/8" MNPT, Brass

Part Information

Part #
CP-CGA295-38-BR

Fitting CGA 295 Liquid/Vent, 3/8" MNPT, Brass


Add to quote

Elbow 90, 3/8" ODT x 1/4" FNPT, Brass

Part Information

Part #
CP-ELB-90-38OD-14F-BR

Elbow 90, 3/8" ODT x 1/4" FNPT, Brass


Add to quote

Copper Tube, 3/8" x 7"

Part Information

Part #
CP-TUBE-COPPER-38-7

Copper Tube, 3/8″ x 7″


Add to quote

Elbow 90, 3/8″ ODT x 1/4″ MNPT, Brass

Part Information

Part #
CP-ELB-90-38OD-14M-BR

Elbow 90, 3/8" ODT x 1/4" MNPT, Brass


Add to quote

Regulator Cryo, PB, 300 psi, ¼" FNPT

Part Information

Part #
CP-PB-HP-14

Regulator Cryo, PB, High Pressure, Spring range 125 - 350 psi, 1/4" FNPT, Set point 300 psi, RegO


Add to quote

Ball Valve, 1/4″ MNPT x 1/4″ FNPT 2-Way, Brass, Silver Handle

Part Information

Part #
CP-VLV-14M-14F-SILVER

Ball Valve, 1/4" MNPT x 1/4" FNPT 2-Way, Brass, Silver Handle


Add to quote

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass

Part Information

Part #
CP-ELB-90-14F-14M-BR

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass


Add to quote

Valve, 3/8" FNPT, 2" Tube, Blue Handwheel

Part Information

Part #
CP-VLV-38F-2T-BL

Valve, 3/8" FNPT, 2" Tube, Blue Handwheel


Add to quote

Fitting CGA 326 Liquid/Vent, 3/8" MNPT, Brass

Part Information

No Image

Part # CP-CGA326-38-BR

Fitting CGA 326 Liquid/Vent, 3/8" MNPT, Brass

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Fitting CGA 624 Liquid/Vent, 3/8" MNPT, Brass

Part Information

No Image

Part # CP-CGA624-38-BR

Fitting CGA 624 Liquid/Vent, 3/8" MNPT, Brass

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Cross, 1/4" FNPT, Brass

Part Information

Part #
CP-CROSS-14F-BR

Cross, 1/4" FNPT, Brass


Add to quote

Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT

Part Information

Part #
CP-G-CBM-600-14M

Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT


Add to quote

Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50)

Part Information

Part #
CP-LCSD-350

Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50)


Add to quote

Pressure Relief Valve, 350 PSI, 1/4" MNPT

Part Information

Part #
CP-PRV-350-14

Pressure Relief Valve, 350 PSI, 1/4″ MNPT


Add to quote

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass

Part Information

Part #
CP-ELB-90-14F-14M-BR

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass


Add to quote

Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT

Part Information

Part #
CP-SH-HP-14

Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT


Add to quote

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

Part Information

No Image

Part # CP-SCREW-14-20-SS

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Lock Washer, 1/4", Split (Sold in Packs of 50)

Part Information

No Image

Part # CP-LKWSH-14

Lock Washer, 1/4", Split (Sold in Packs of 50)

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Sight Gauge Protector, Orange, HP, Chart style

Part Information

Part #
CP-SGP-OR-HP-C

Sight Gauge Protector, Orange, HP, C style


Add to quote

Snap-On Indicator Standard, Chart style

Part Information

Part #
CP-SOI-AR-CO2-N2O-C

Snap-On Indicator Gauge, C Style, Standard (AR/CO2/N2O)


Add to quote

Float Rod Liquid Level Kit, 29.5" Float Rod, Spring, and Brass Indicator, Chart Style

Part Information

No Image

Part # CP-FLRD-KIT-29.5-C

Float Rod Liquid Level Kit, 29.5" Float Rod, Spring, and Brass Indicator, C Style

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

O-Ring for MVE Tanks

Part Information

Part #
CP-ORING-C

O-Ring for C Style


Add to quote

Cap Annular Space, 1 3/4″, Polyethylene

Part Information

Part #
CP-CAP-134

Cap Annular Space, 1 3/4″, Polyethylene


Add to quote

Cap Pumpout, 1 3/16″, Polyethylene

Part Information

Part #
CP-CAP-1316

Cap Pumpout, 1 3/16″, Polyethylene


Add to quote

Labels, Liquid Cylinder Valve, Gas, Pack 50

Part Information

No Image

Part # CP-LBL-GAS

Labels, Liquid Cylinder Valve, Gas, 50 Pack

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Labels, Liquid Cylinder Valve, Vent, Pack 50

Part Information

No Image

Part # CP-LBL-VENT

Labels, Liquid Cylinder Valve, Vent, 50 Pack

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Labels, Liquid Cylinder Valve, Pressure Builder, Pack 50

Part Information

No Image

Part # CP-LBL-PB

Labels, Liquid Cylinder Valve, Pressure Builder, 50 Pack

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Labels, Liquid Cylinder Valve, Liquid, Pack 50

Part Information

No Image

Part # CP-LBL-LIQ

Labels, Liquid Cylinder Valve, Liquid, 50 Pack

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Cable Restraint Kit, X-Large Washer, CGA622/CGA624

Part Information

Part #
CP-RST-CKIT-XLRGW

Cable Restraint Kit, X-Large Washer, CGA622/CGA624


Add to quote

Cable Restraint Kit, Small Washer, CGA295

Part Information

Part #
CP-RST-CKIT-SMLW

Cable Restraint Kit, Small Washer, CGA295


Add to quote

Cable Restraint Kit, X-Large Washer, CGA622/CGA624

Part Information

Part #
CP-RST-CKIT-XLRGW

Cable Restraint Kit, X-Large Washer, CGA622/CGA624


Add to quote

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540

Part Information

Part #
CP-RST-CKIT-LRGW

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540


Add to quote

Part Number
Description
Price
  • 1 CP-VLV-38F-314T-GR Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel
  • 2A CP-CGA624-38-BR Fitting CGA 624 Liquid/Vent, 3/8" MNPT, Brass
  • 2B CP-CGA295-38-BR Fitting CGA 295 Liquid/Vent, 3/8" MNPT, Brass
  • 3A CP-RST-CKIT-XLRGW Cable Restraint Kit, X-Large Washer, CGA622/CGA624
  • 3B CP-RST-CKIT-SMLW Cable Restraint Kit, Small Washer, CGA295
  • 4 CP-ELB-90-38OD-14F-BR Elbow 90, 3/8" ODT x 1/4" FNPT, Brass
  • 5 CP-TUBE-COPPER-38-7 Copper Tube, 3/8″ x 7″
  • 6 CP-ELB-90-38OD-14M-BR Elbow 90, 3/8" ODT x 1/4" MNPT, Brass
  • 7 CP-PB-HP-14 Regulator Cryo, PB, High Pressure, Spring range 125 - 350 psi, 1/4" FNPT, Set point 300 psi, RegO
  • 8 CP-VLV-14M-14F-SILVER Ball Valve, 1/4" MNPT x 1/4" FNPT 2-Way, Brass, Silver Handle
  • 9 CP-ELB-90-14F-14M-BR Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass
  • 10 CP-VLV-38F-2T-BL Valve, 3/8" FNPT, 2" Tube, Blue Handwheel
  • 11 CP-CGA326-38-BR Fitting CGA 326 Liquid/Vent, 3/8" MNPT, Brass
  • 12 CP-RST-CKIT-LRGW Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540
  • 13 CP-CROSS-14F-BR Cross, 1/4" FNPT, Brass
  • 14 CP-G-CBM-600-14M Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT
  • 15 CP-LCSD-350 Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50)
  • 16 CP-PRV-350-14 Pressure Relief Valve, 350 PSI, 1/4″ MNPT
  • 17 CP-SH-HP-14 Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT
  • 18 CP-SCREW-14-20-SS Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)
  • 19 CP-LKWSH-14 Lock Washer, 1/4", Split (Sold in Packs of 50)
  • 20 CP-SGP-OR-HP-C Sight Gauge Protector, Orange, HP, C style
  • 21 CP-SOI-AR-CO2-N2O-C Snap-On Indicator Gauge, C Style, Standard (AR/CO2/N2O)
  • 22 CP-FLRD-KIT-29.5-C Float Rod Liquid Level Kit, 29.5" Float Rod, Spring, and Brass Indicator, C Style
  • 23 CP-ORING-C O-Ring for C Style
  • 24 CP-CAP-134 Cap Annular Space, 1 3/4″, Polyethylene
  • 25 CP-CAP-1316 Cap Pumpout, 1 3/16″, Polyethylene
  • 26 CP-LBL-GAS Labels, Liquid Cylinder Valve, Gas, 50 Pack
  • 27 CP-LBL-VENT Labels, Liquid Cylinder Valve, Vent, 50 Pack
  • 28 CP-LBL-PB Labels, Liquid Cylinder Valve, Pressure Builder, 50 Pack
  • 29 CP-LBL-LIQ Labels, Liquid Cylinder Valve, Liquid, 50 Pack
