CSI PLC-180LP 22PSI IND OXYGEN

The Exploded Liquid Cylinder Diagrams offer a fast and straightforward method to identify the correct parts that correspond to the specific tank model you are working on!

How To Use:

Begin by choosing the Liquid Cylinder Brand you are working with. Next, select the Model, followed by the Pressure. Finally, choose the Industry & Gas Service relevant to the Liquid Cylinder you need.

Once you have made these selections, scroll down to the diagram or refer to the right-hand table to locate the parts you require.

The interactive diagram shown is a guide, as your tank may have undergone previous repairs that utilized different parts than those displayed.

 Use this diagram in conjunction with your tank to confirm the parts you need.

 Please contact Customer Service with any questions and/or concerns.

Brand

Model

Pressure

Industry & Gas Service

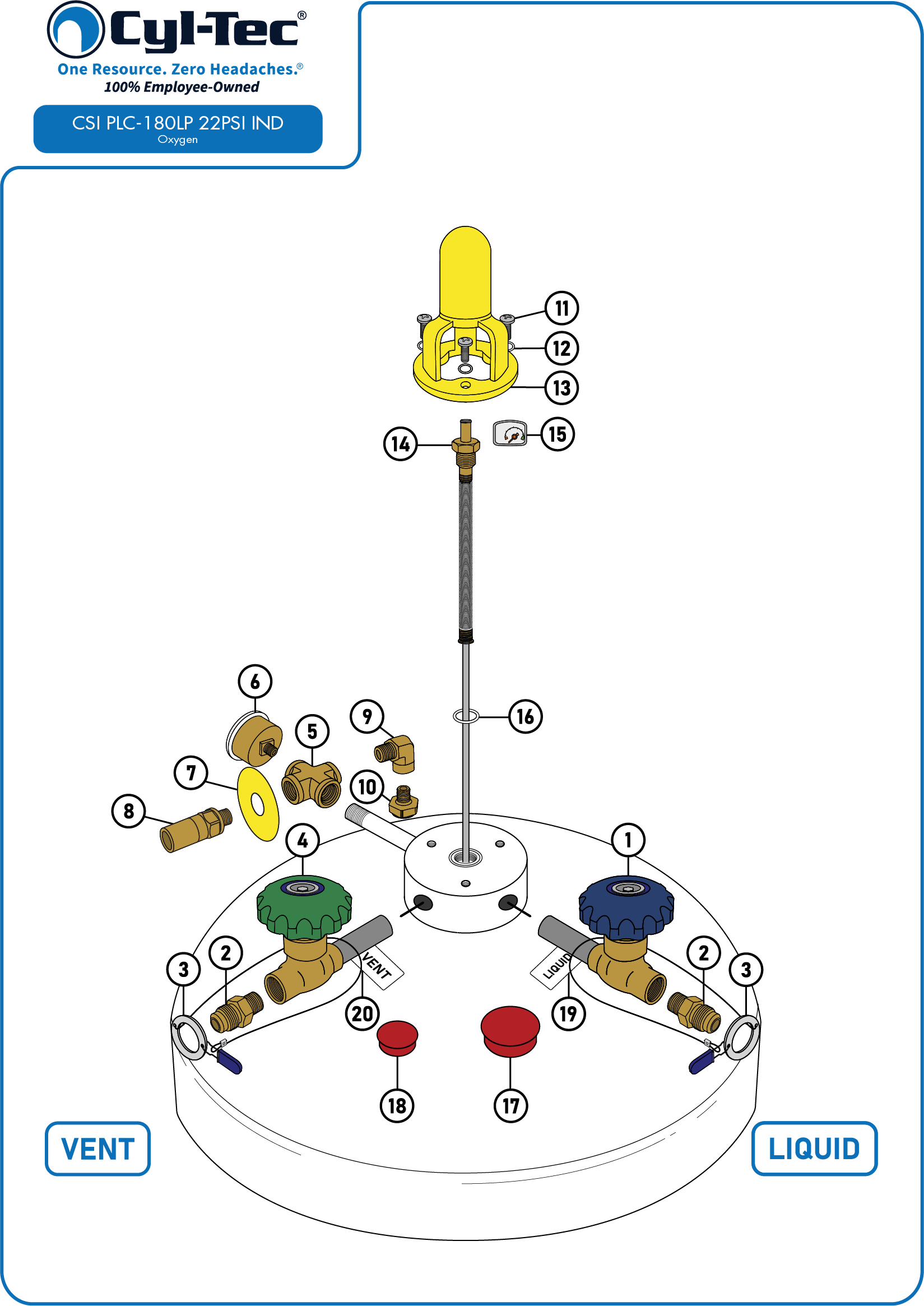

CSI PLC-180LP 22PSI IND O
Valve, 3/8" FNPT, 2" Tube, Blue Handwheel Fitting CGA 440 Liquid/Vent, 3/8″ MNPT , Brass Fitting CGA 440 Liquid/Vent, 3/8″ MNPT , Brass Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540 Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540 Valve, 3/8" FNPT, 2" Tube, Green Handwheel Cross, 1/4″ FNPT, Brass Gauge, Center back mount, 2″, 100 PSI, 1/4″ MNPT Liquid Cylinder Safety Disk, 22 psi (Sold in Packs of 50) Pressure relief valve, 22 PSI, 1/4″ MNPT Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass Safety head burst disc, Range 180-200, 1/4″ MNPT Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50) Lock Washer, 1/4", Split (Sold in Packs of 50) Sight Gauge Protector, Yellow, LP, Chart style Float Rod Liquid Level Kit, 54" Float Rod, Spring, and Brass Indicator, Chart Style Snap-On Indicator O2, Chart style O-Ring for CSI Tanks Cap Annular Space, 1 3/4″, Polyethylene Cap Pumpout, 1 3/16″, Polyethylene Labels, Liquid Cylinder Valve, Liquid, Pack 50 Labels, Liquid Cylinder Valve, Vent, Pack 50

Valve, 3/8" FNPT, 2" Tube, Blue Handwheel

Fitting CGA 440 Liquid/Vent, 3/8″ MNPT , Brass

Fitting CGA 440 Liquid/Vent, 3/8″ MNPT , Brass

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540

Valve, 3/8" FNPT, 2" Tube, Green Handwheel

Cross, 1/4″ FNPT, Brass

Gauge, Center back mount, 2″, 100 PSI, 1/4″ MNPT

Liquid Cylinder Safety Disk, 22 psi (Sold in Packs of 50)

Pressure relief valve, 22 PSI, 1/4″ MNPT

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass

Safety head burst disc, Range 180-200, 1/4″ MNPT

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

Lock Washer, 1/4", Split (Sold in Packs of 50)

Sight Gauge Protector, Yellow, LP, Chart style

Float Rod Liquid Level Kit, 54" Float Rod, Spring, and Brass Indicator, Chart Style

Snap-On Indicator O2, Chart style

O-Ring for CSI Tanks

Cap Annular Space, 1 3/4″, Polyethylene

Cap Pumpout, 1 3/16″, Polyethylene

Labels, Liquid Cylinder Valve, Liquid, Pack 50

Labels, Liquid Cylinder Valve, Vent, Pack 50

Part Number
Description
Price
  • 1 CP-VLV-38F-2T-BL Valve, 3/8" FNPT, 2" Tube, Blue Handwheel
  • 2 CP-CGA440-38-BR Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass
  • 3 CP-RST-CKIT-LRGW Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540
  • 4 CP-VLV-38F-2T-GR Valve, 3/8" FNPT, 2" Tube, Green Handwheel
  • 5 CP-CROSS-14F-BR Cross, 1/4" FNPT, Brass
  • 6 CP-G-CBM-100-14M Gauge, Center Back Mount, 2", 100 psi, 1/4" MNPT
  • 7 CP-LCSD-22 Liquid Cylinder Safety Disk, 22 psi (Sold in Packs of 50)
  • 8 CP-PRV-22-14 Pressure Relief Valve, 22 PSI, 1/4" MNPT
  • 9 CP-ELB-90-14F-14M-BR Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass
  • 10 CP-SH-LP-14 Safety Head Burst Disc, Range 180-200, 1/4" MNPT
  • 11 CP-SCREW-14-20-SS Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)
  • 12 CP-LKWSH-14 Lock Washer, 1/4", Split (Sold in Packs of 50)
  • 13 CP-SGP-YW-LP-C Sight Gauge Protector, Yellow, LP, C style
  • 14 CP-FLRD-KIT-54-C Float Rod Liquid Level Kit, 54" Float Rod, Spring, and Brass Indicator, C Style
  • 15 CP-SOI-O2-C Snap-On Indicator O2, C style
  • 16 CP-ORING-CSI O-Ring for CSI Tanks
  • 17 CP-CAP-134 Cap Annular Space, 1 3/4″, Polyethylene
  • 18 CP-CAP-1316 Cap Pumpout, 1 3/16″, Polyethylene
  • 19 CP-LBL-LIQ Labels, Liquid Cylinder Valve, Liquid, 50 Pack
  • 20 CP-LBL-VENT Labels, Liquid Cylinder Valve, Vent, 50 Pack
