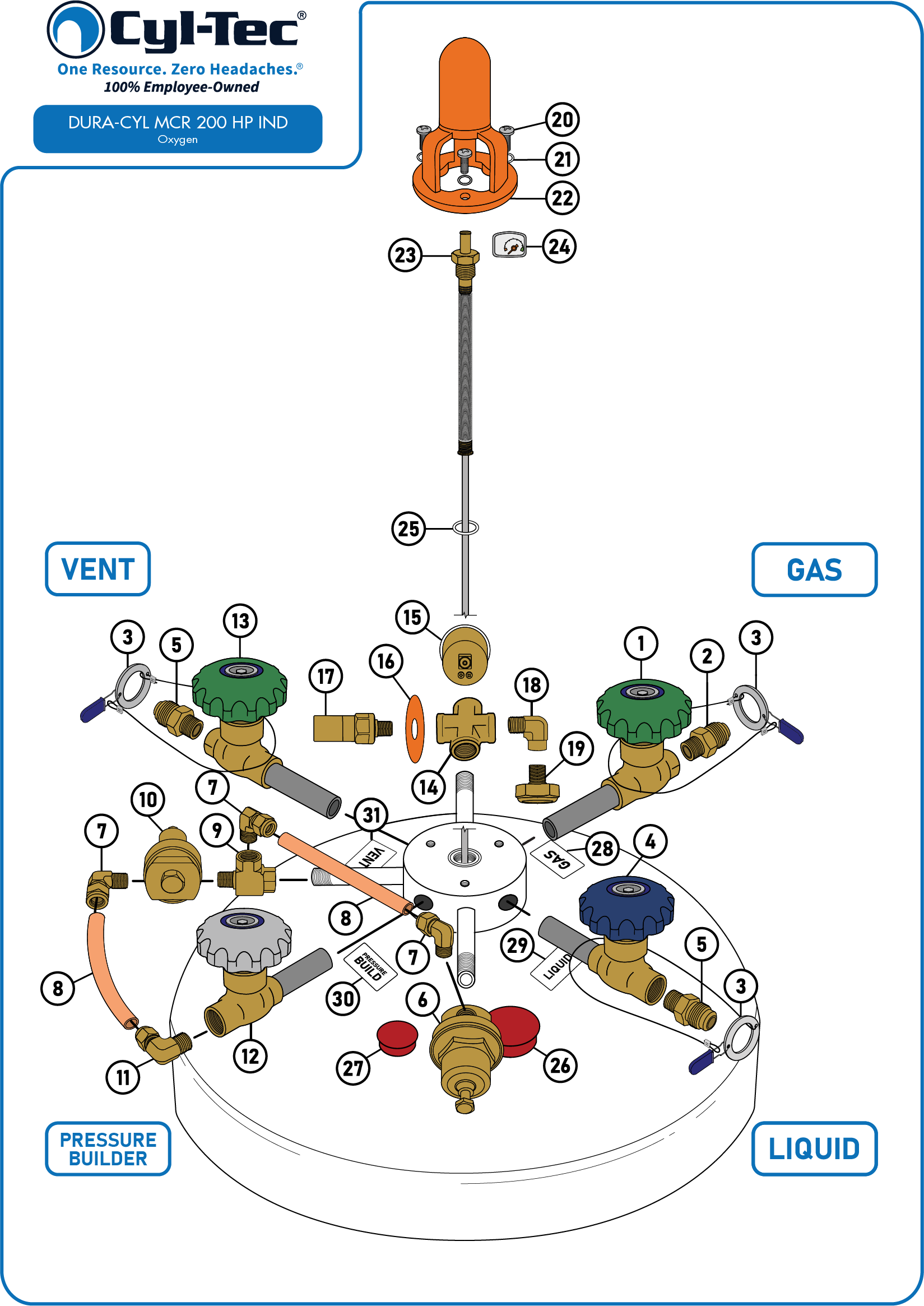

DURA-CYL MCR 200 350PSI IND OXYGEN

The Exploded Liquid Cylinder Diagrams offer a fast and straightforward method to identify the correct parts that correspond to the specific tank model you are working on!

How To Use:

Begin by choosing the Liquid Cylinder Brand you are working with. Next, select the Model, followed by the Pressure. Finally, choose the Industry & Gas Service relevant to the Liquid Cylinder you need.

Once you have made these selections, scroll down to the diagram or refer to the right-hand table to locate the parts you require.

The interactive diagram shown is a guide, as your tank may have undergone previous repairs that utilized different parts than those displayed.

 Use this diagram in conjunction with your tank to confirm the parts you need.

 Please contact Customer Service with any questions and/or concerns.

Brand

Model

Pressure

Industry & Gas Service

DURA-CYL MCR 200 350PSI IND OXYGEN
Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel Fitting CGA 540 Liquid/Vent, 3/8" MNPT, Brass Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540 Valve, 3/8″ FNPT, 2″ Tube, Blue Handwheel Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540 Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540 Regulator Cryo, Econ, 325 psi, ¼" FNPT Elbow 90, 3/8″ ODT x 1/4″ MNPT, Brass Elbow 90, 3/8″ ODT x 1/4″ MNPT, Brass Elbow 90, 3/8″ ODT x 1/4″ MNPT, Brass Copper Tube, 3/8″ x 7″ Copper Tube, 3/8″ x 7″ Street Tee, 1/4″ NPT, Brass Regulator Cryo, PB, 300 psi, ¼" FNPT Elbow 90, 3/8″ ODT x 3/8″ MNPT, Brass Valve, 3/8″ FNPT, 1″ Tube, Silver Handwheel Valve, 3/8″ FNPT, 2″ Tube, Green Handwheel Cross, 1/4″ FNPT, Brass Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50) Pressure Relief Valve, 350 PSI, 1/4" MNPT Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50) Lock Washer, 1/4", Split (Sold in Packs of 50) Sight Gauge Protector, Orange, HP, Chart style Liquid Level Indicator Gauge Kit, C-Style Snap-On Indicator O2, Chart style O-Ring for MVE Tanks Cap Annular Space, 1 3/4″, Polyethylene Cap Pumpout, 1 3/16″, Polyethylene Labels, Liquid Cylinder Valve, Gas, pack 50 Labels, Liquid Cylinder Valve, Liquid, pack 50 Labels, Liquid Cylinder Valve, Pressure Builder, pack 50 Labels, Liquid Cylinder Valve, Vent, pack 50

Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel

Part Information

Part #
CP-VLV-38F-314T-GR

Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel


Add to quote

Fitting CGA 540 Liquid/Vent, 3/8" MNPT, Brass

Part Information

Part #
CP-CGA540-38-BR

Fitting CGA 540 Liquid/Vent, 3/8" MNPT, Brass


Add to quote

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540

Part Information

Part #
CP-RST-CKIT-LRGW

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540


Add to quote

Valve, 3/8″ FNPT, 2″ Tube, Blue Handwheel

Part Information

Part #
CP-VLV-38F-2T-BL

Valve, 3/8" FNPT, 2" Tube, Blue Handwheel


Add to quote

Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass

Part Information

Part #
CP-CGA440-38-BR

Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass


Add to quote

Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass

Part Information

Part #
CP-CGA440-38-BR

Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass


Add to quote

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540

Part Information

Part #
CP-RST-CKIT-LRGW

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540


Add to quote

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540

Part Information

Part #
CP-RST-CKIT-LRGW

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540


Add to quote

Regulator Cryo, Econ, 325 psi, ¼" FNPT

Part Information

Part #
CP-ECON-HP-14-R

Regulator Cryo, Econ, High Pressure, Spring range 150 - 350 psi, ¼" FNPT, Set point 325 psi, RegO


Add to quote

Elbow 90, 3/8″ ODT x 1/4″ MNPT, Brass

Part Information

Part #
CP-ELB-90-38OD-14M-BR

Elbow 90, 3/8" ODT x 1/4" MNPT, Brass


Add to quote

Elbow 90, 3/8″ ODT x 1/4″ MNPT, Brass

Part Information

Part #
CP-ELB-90-38OD-14M-BR

Elbow 90, 3/8" ODT x 1/4" MNPT, Brass


Add to quote

Elbow 90, 3/8″ ODT x 1/4″ MNPT, Brass

Part Information

Part #
CP-ELB-90-38OD-14M-BR

Elbow 90, 3/8" ODT x 1/4" MNPT, Brass


Add to quote

Copper Tube, 3/8″ x 7″

Part Information

Part #
CP-TUBE-COPPER-38-7

Copper Tube, 3/8″ x 7″


Add to quote

Copper Tube, 3/8″ x 7″

Part Information

Part #
CP-TUBE-COPPER-38-7

Copper Tube, 3/8″ x 7″


Add to quote

Street Tee, 1/4″ NPT, Brass

Part Information

Part #
CP-ST-14-BR

Street Tee, 1/4" NPT, Brass


Add to quote

Regulator Cryo, PB, 300 psi, ¼" FNPT

Part Information

Part #
CP-PB-HP-14

Regulator Cryo, PB, High Pressure, Spring range 125 - 350 psi, 1/4" FNPT, Set point 300 psi, RegO


Add to quote

Elbow 90, 3/8″ ODT x 3/8″ MNPT, Brass

Part Information

Part #
CP-ELB-90-38OD-38M-BR

Elbow 90, 3/8" ODT x 3/8" MNPT, Brass


Add to quote

Valve, 3/8″ FNPT, 1″ Tube, Silver Handwheel

Part Information

Part #
CP-VLV-38F-1T-SILVER

Valve, 3/8" FNPT, 1" Tube, Silver Handwheel


Add to quote

Valve, 3/8″ FNPT, 2″ Tube, Green Handwheel

Part Information

Part #
CP-VLV-38F-2T-GR

Valve, 3/8" FNPT, 2" Tube, Green Handwheel


Add to quote

Cross, 1/4″ FNPT, Brass

Part Information

Part #
CP-CROSS-14F-BR

Cross, 1/4" FNPT, Brass


Add to quote

Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT

Part Information

Part #
CP-G-CBM-600-14M

Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT


Add to quote

Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50)

Part Information

Part #
CP-LCSD-350

Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50)


Add to quote

Pressure Relief Valve, 350 PSI, 1/4" MNPT

Part Information

Part #
CP-PRV-350-14

Pressure Relief Valve, 350 PSI, 1/4″ MNPT


Add to quote

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass

Part Information

Part #
CP-ELB-90-14F-14M-BR

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass


Add to quote

Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT

Part Information

Part #
CP-SH-HP-14

Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT


Add to quote

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

Part Information

No Image

Part # CP-SCREW-14-20-SS

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Lock Washer, 1/4", Split (Sold in Packs of 50)

Part Information

No Image

Part # CP-LKWSH-14

Lock Washer, 1/4", Split (Sold in Packs of 50)

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Sight Gauge Protector, Orange, HP, Chart style

Part Information

Part #
CP-SGP-OR-HP-C

Sight Gauge Protector, Orange, HP, C style


Add to quote

Liquid Level Indicator Gauge Kit, C-Style

Part Information

No Image

Part # CP-FLRD-KIT-59-C

Float Rod Liquid Level Kit, 59" Float Rod, Spring, and Brass Indicator, C Style

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Snap-On Indicator O2, Chart style

Part Information

Part #
CP-SOI-O2-C

Snap-On Indicator O2, C style


Add to quote

O-Ring for MVE Tanks

Part Information

Part #
CP-ORING-C

O-Ring for C Style


Add to quote

Cap Annular Space, 1 3/4″, Polyethylene

Part Information

Part #
CP-CAP-134

Cap Annular Space, 1 3/4″, Polyethylene


Add to quote

Cap Pumpout, 1 3/16″, Polyethylene

Part Information

Part #
CP-CAP-1316

Cap Pumpout, 1 3/16″, Polyethylene


Add to quote

Labels, Liquid Cylinder Valve, Gas, pack 50

Part Information

No Image

Part # CP-LBL-GAS

Labels, Liquid Cylinder Valve, Gas, 50 Pack

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Labels, Liquid Cylinder Valve, Liquid, pack 50

Part Information

No Image

Part # CP-LBL-LIQ

Labels, Liquid Cylinder Valve, Liquid, 50 Pack

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Labels, Liquid Cylinder Valve, Pressure Builder, pack 50

Part Information

No Image

Part # CP-LBL-PB

Labels, Liquid Cylinder Valve, Pressure Builder, 50 Pack

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Labels, Liquid Cylinder Valve, Vent, pack 50

Part Information

No Image

Part # CP-LBL-VENT

Labels, Liquid Cylinder Valve, Vent, 50 Pack

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Part Number
Description
Price
  • 1 CP-VLV-38F-314T-GR Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel
  • 2 CP-CGA540-38-BR Fitting CGA 540 Liquid/Vent, 3/8" MNPT, Brass
  • 3 CP-RST-CKIT-LRGW Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540
  • 4 CP-VLV-38F-2T-BL Valve, 3/8" FNPT, 2" Tube, Blue Handwheel
  • 5 CP-CGA440-38-BR Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass
  • 6 CP-ECON-HP-14-R Regulator Cryo, Econ, High Pressure, Spring range 150 - 350 psi, ¼" FNPT, Set point 325 psi, RegO
  • 7 CP-ELB-90-38OD-14M-BR Elbow 90, 3/8" ODT x 1/4" MNPT, Brass
  • 8 CP-TUBE-COPPER-38-7 Copper Tube, 3/8″ x 7″
  • 9 CP-ST-14-BR Street Tee, 1/4" NPT, Brass
  • 10 CP-PB-HP-14 Regulator Cryo, PB, High Pressure, Spring range 125 - 350 psi, 1/4" FNPT, Set point 300 psi, RegO
  • 11 CP-ELB-90-38OD-38M-BR Elbow 90, 3/8" ODT x 3/8" MNPT, Brass
  • 12 CP-VLV-38F-1T-SILVER Valve, 3/8" FNPT, 1" Tube, Silver Handwheel
  • 13 CP-VLV-38F-2T-GR Valve, 3/8" FNPT, 2" Tube, Green Handwheel
  • 14 CP-CROSS-14F-BR Cross, 1/4" FNPT, Brass
  • 15 CP-G-CBM-600-14M Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT
  • 16 CP-LCSD-350 Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50)
  • 17 CP-PRV-350-14 Pressure Relief Valve, 350 PSI, 1/4″ MNPT
  • 18 CP-ELB-90-14F-14M-BR Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass
  • 19 CP-SH-HP-14 Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT
  • 20 CP-SCREW-14-20-SS Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)
  • 21 CP-LKWSH-14 Lock Washer, 1/4", Split (Sold in Packs of 50)
  • 22 CP-SGP-OR-HP-C Sight Gauge Protector, Orange, HP, C style
  • 23 CP-FLRD-KIT-59-C Float Rod Liquid Level Kit, 59" Float Rod, Spring, and Brass Indicator, C Style
  • 24 CP-SOI-O2-C Snap-On Indicator O2, C style
  • 25 CP-ORING-C O-Ring for C Style
  • 26 CP-CAP-134 Cap Annular Space, 1 3/4″, Polyethylene
  • 27 CP-CAP-1316 Cap Pumpout, 1 3/16″, Polyethylene
  • 28 CP-LBL-GAS Labels, Liquid Cylinder Valve, Gas, 50 Pack
  • 29 CP-LBL-LIQ Labels, Liquid Cylinder Valve, Liquid, 50 Pack
  • 30 CP-LBL-PB Labels, Liquid Cylinder Valve, Pressure Builder, 50 Pack
  • 31 CP-LBL-VENT Labels, Liquid Cylinder Valve, Vent, 50 Pack

The DURA-CYL MCR 200 350PSI IND OXYGEN is a 350 PSI high-pressure liquid cylinder for industrial Oxygen service, manufactured by Chart/MVE. This interactive parts diagram identifies the genuine replacement components for this model — including valves, regulators, fittings, gauges and pressure relief valves. Click any numbered hotspot on the diagram, or a row in the parts list, to view the matching Cyl-Tec part, check availability, and add it to your order or request a quote.
