MVE DURA-CYL 160 230PSI MED NITROGEN

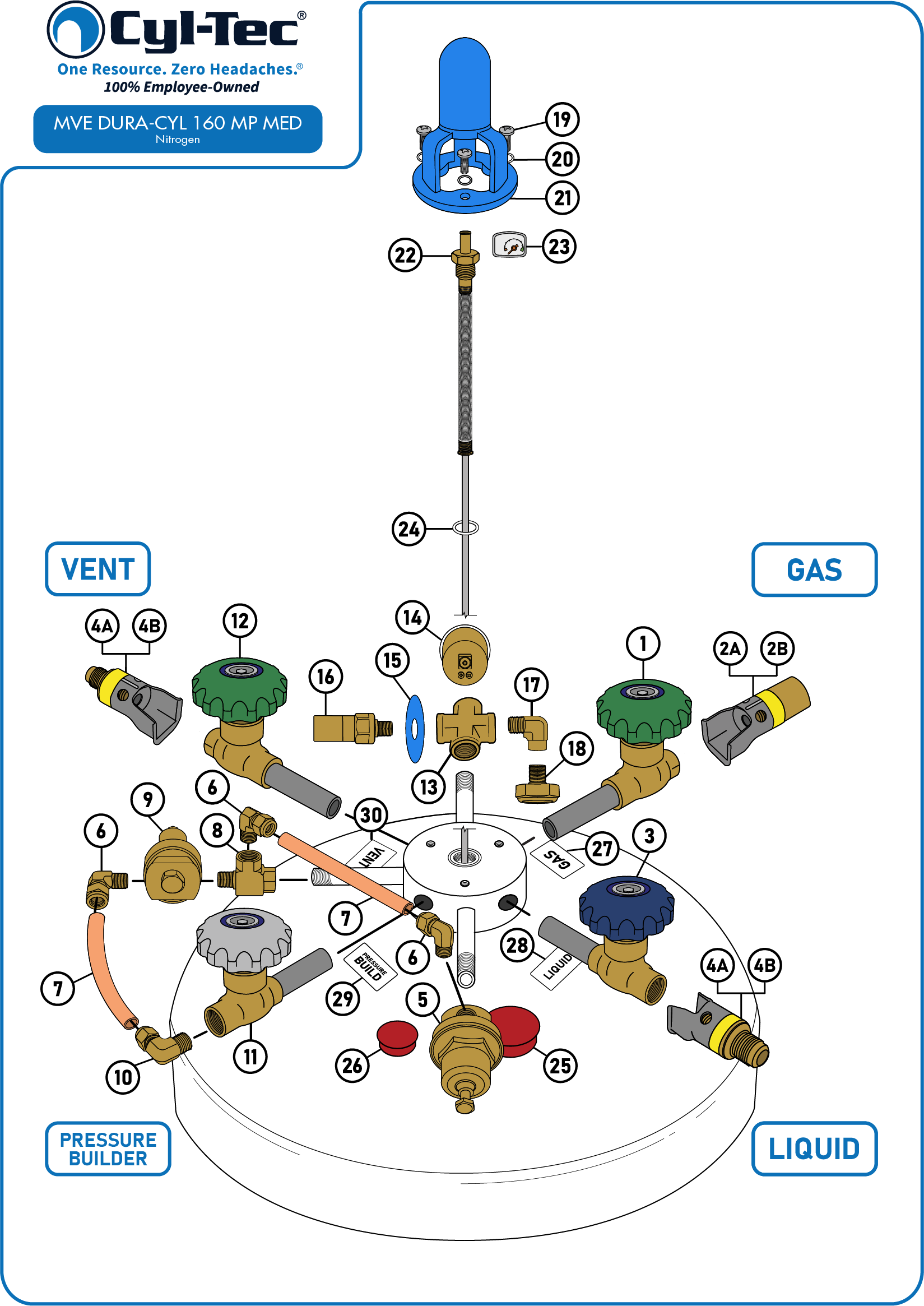

The Exploded Liquid Cylinder Diagrams offer a fast and straightforward method to identify the correct parts that correspond to the specific tank model you are working on!

How To Use:

Begin by choosing the Liquid Cylinder Brand you are working with. Next, select the Model, followed by the Pressure. Finally, choose the Industry & Gas Service relevant to the Liquid Cylinder you need.

Once you have made these selections, scroll down to the diagram or refer to the right-hand table to locate the parts you require.

The interactive diagram shown is a guide, as your tank may have undergone previous repairs that utilized different parts than those displayed.

 Use this diagram in conjunction with your tank to confirm the parts you need.

 Please contact Customer Service with any questions and/or concerns.

Brand

Model

Pressure

Industry & Gas Service

MVE DURA-CYL 160 230PSI MED N
Valve, 3/8″ FNPT, 3.25″ Tube, Green Handwheel Tamper Proof CGA Connection, CGA 580 Tamper Proof CGA Connection, CGA 580, REGO-Lok Kit Valve, 3/8″ FNPT, 2″ Tube, Blue Handwheel Tamper Proof CGA Connection, CGA 295 Tamper Proof CGA Connection, CGA 295 Tamper Proof CGA Connection, CGA 295, REGO Lok Kit Tamper Proof CGA Connection, CGA 295, REGO Lok Kit Regulator Cryo, Econ, 140 psi, ¼" FNPT Elbow 90, 3/8″ ODT x 1/4″ MNPT, Brass Elbow 90, 3/8″ ODT x 1/4″ MNPT, Brass Elbow 90, 3/8″ ODT x 1/4″ MNPT, Brass Copper Tube, 3/8″ x 5″ Copper Tube, 3/8″ x 5″ Street Tee, 1/4″ NPT, Brass Regulator Cryo, PB,125 psi, ¼" FNPT Elbow 90, 3/8″ ODT x 3/8″ MNPT, Brass Valve, 3/8″ FNPT, 1″ Tube, Silver Handwheel Valve, 3/8″ FNPT, 2″ Tube, Green Handwheel Cross, 1/4″ FNPT, Brass Gauge, Center back mount, 2″, 400 PSI, 1/4″ MNPT Liquid Cylinder Safety Disk, 230 psi (Sold in Packs of 50) Pressure relief valve, 230 PSI, 1/4″ MNPT Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass Safety head burst disc, Range 360-400 PSIG, 1/4″ MNPT Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50) Lock Washer, 1/4", Split (Sold in Packs of 50) Sight Gauge Protector, Blue, MP, Chart style Liquid Level Indicator Gauge Kit, C-Style Snap-On Indicator N2, Chart style O-Ring for MVE Tanks Cap Annular Space, 1 3/4″, Polyethylene Cap Pumpout, 1 3/16″, Polyethylene Labels, Liquid Cylinder Valve, Gas, pack 50 Labels, Liquid Cylinder Valve, Liquid, pack 50 Labels, Liquid Cylinder Valve, Pressure Builder, pack 50 Labels, Liquid Cylinder Valve, Vent, pack 50

Valve, 3/8″ FNPT, 3.25″ Tube, Green Handwheel

Tamper Proof CGA Connection, CGA 580

Tamper Proof CGA Connection, CGA 580, REGO-Lok Kit

Valve, 3/8″ FNPT, 2″ Tube, Blue Handwheel

Tamper Proof CGA Connection, CGA 295

Tamper Proof CGA Connection, CGA 295

Tamper Proof CGA Connection, CGA 295, REGO Lok Kit

Tamper Proof CGA Connection, CGA 295, REGO Lok Kit

Regulator Cryo, Econ, 140 psi, ¼" FNPT

Elbow 90, 3/8″ ODT x 1/4″ MNPT, Brass

Elbow 90, 3/8″ ODT x 1/4″ MNPT, Brass

Elbow 90, 3/8″ ODT x 1/4″ MNPT, Brass

Copper Tube, 3/8″ x 5″

Copper Tube, 3/8″ x 5″

Street Tee, 1/4″ NPT, Brass

Regulator Cryo, PB,125 psi, ¼" FNPT

Elbow 90, 3/8″ ODT x 3/8″ MNPT, Brass

Valve, 3/8″ FNPT, 1″ Tube, Silver Handwheel

Valve, 3/8″ FNPT, 2″ Tube, Green Handwheel

Cross, 1/4″ FNPT, Brass

Gauge, Center back mount, 2″, 400 PSI, 1/4″ MNPT

Liquid Cylinder Safety Disk, 230 psi (Sold in Packs of 50)

Pressure relief valve, 230 PSI, 1/4″ MNPT

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass

Safety head burst disc, Range 360-400 PSIG, 1/4″ MNPT

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

Lock Washer, 1/4", Split (Sold in Packs of 50)

Sight Gauge Protector, Blue, MP, Chart style

Liquid Level Indicator Gauge Kit, C-Style

Snap-On Indicator N2, Chart style

O-Ring for MVE Tanks

Cap Annular Space, 1 3/4″, Polyethylene

Cap Pumpout, 1 3/16″, Polyethylene

Labels, Liquid Cylinder Valve, Gas, pack 50

Labels, Liquid Cylinder Valve, Liquid, pack 50

Labels, Liquid Cylinder Valve, Pressure Builder, pack 50

Labels, Liquid Cylinder Valve, Vent, pack 50

Part Number
Description
Price
  • 1 CP-VLV-38F-314T-GR Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel
  • 2A CP-TP-CGA580 Tamper Proof CGA Connection, CGA 580
  • 2B CP-TP-CGA580-R Tamper Proof CGA Connection, CGA 580, REGO-Lok Kit
  • 3 CP-VLV-38F-2T-BL Valve, 3/8" FNPT, 2" Tube, Blue Handwheel
  • 4A CP-TP-CGA295 Tamper Proof CGA Connection, CGA 295
  • 4B CP-TP-CGA295-R Tamper Proof CGA Connection, CGA 295, REGO-Lok Kit
  • 5 CP-ECON-MP-14-R Regulator Cryo, Econ, Medium Pressure, Spring range 50 - 175 psi, ¼" FNPT, Set point 140 psi, RegO
  • 6 CP-ELB-90-38OD-14M-BR Elbow 90, 3/8" ODT x 1/4" MNPT, Brass
  • 7 CP-TUBE-COPPER-38-5 Copper Tube, 3/8" x 5"
  • 8 CP-ST-14-BR Street Tee, 1/4" NPT, Brass
  • 9 CP-PB-MP-14 Regulator Cryo, PB, Medium Pressure, Spring range 25 - 250 psi, 1/4" FNPT, Set point 125 psi, RegO
  • 10 CP-ELB-90-38OD-38M-BR Elbow 90, 3/8" ODT x 3/8" MNPT, Brass
  • 11 CP-VLV-38F-1T-SILVER Valve, 3/8" FNPT, 1" Tube, Silver Handwheel
  • 12 CP-VLV-38F-2T-GR Valve, 3/8" FNPT, 2" Tube, Green Handwheel
  • 13 CP-CROSS-14F-BR Cross, 1/4" FNPT, Brass
  • 14 CP-G-CBM-400-14M Gauge, Center Back Mount, 2", 400 psi, 1/4" MNPT
  • 15 CP-LCSD-230 Liquid Cylinder Safety Disk, 230 psi (Sold in Packs of 50)
  • 16 CP-PRV-230-14 Pressure Relief Valve, 230 PSI, 1/4" MNPT
  • 17 CP-ELB-90-14F-14M-BR Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass
  • 18 CP-SH-MP-14 Safety Head Burst Disc, Range 360-400 PSIG, 1/4" MNPT
  • 19 CP-SCREW-14-20-SS Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)
  • 20 CP-LKWSH-14 Lock Washer, 1/4", Split (Sold in Packs of 50)
  • 21 CP-SGP-BL-MP-C Sight Gauge Protector, Blue, MP, C style
  • 22 CP-FLRD-KIT-48-C Float Rod Liquid Level Kit, 48" Float Rod, Spring, and Brass Indicator, C Style
  • 23 CP-SOI-N2-C Snap-On Indicator N2, C style
  • 24 CP-ORING-C O-Ring for C Style
  • 25 CP-CAP-134 Cap Annular Space, 1 3/4″, Polyethylene
  • 26 CP-CAP-1316 Cap Pumpout, 1 3/16″, Polyethylene
  • 27 CP-LBL-GAS Labels, Liquid Cylinder Valve, Gas, 50 Pack
  • 28 CP-LBL-LIQ Labels, Liquid Cylinder Valve, Liquid, 50 Pack
  • 29 CP-LBL-PB Labels, Liquid Cylinder Valve, Pressure Builder, 50 Pack
  • 30 CP-LBL-VENT Labels, Liquid Cylinder Valve, Vent, 50 Pack
