MVE DURA-LO 22PSI MED NITROGEN

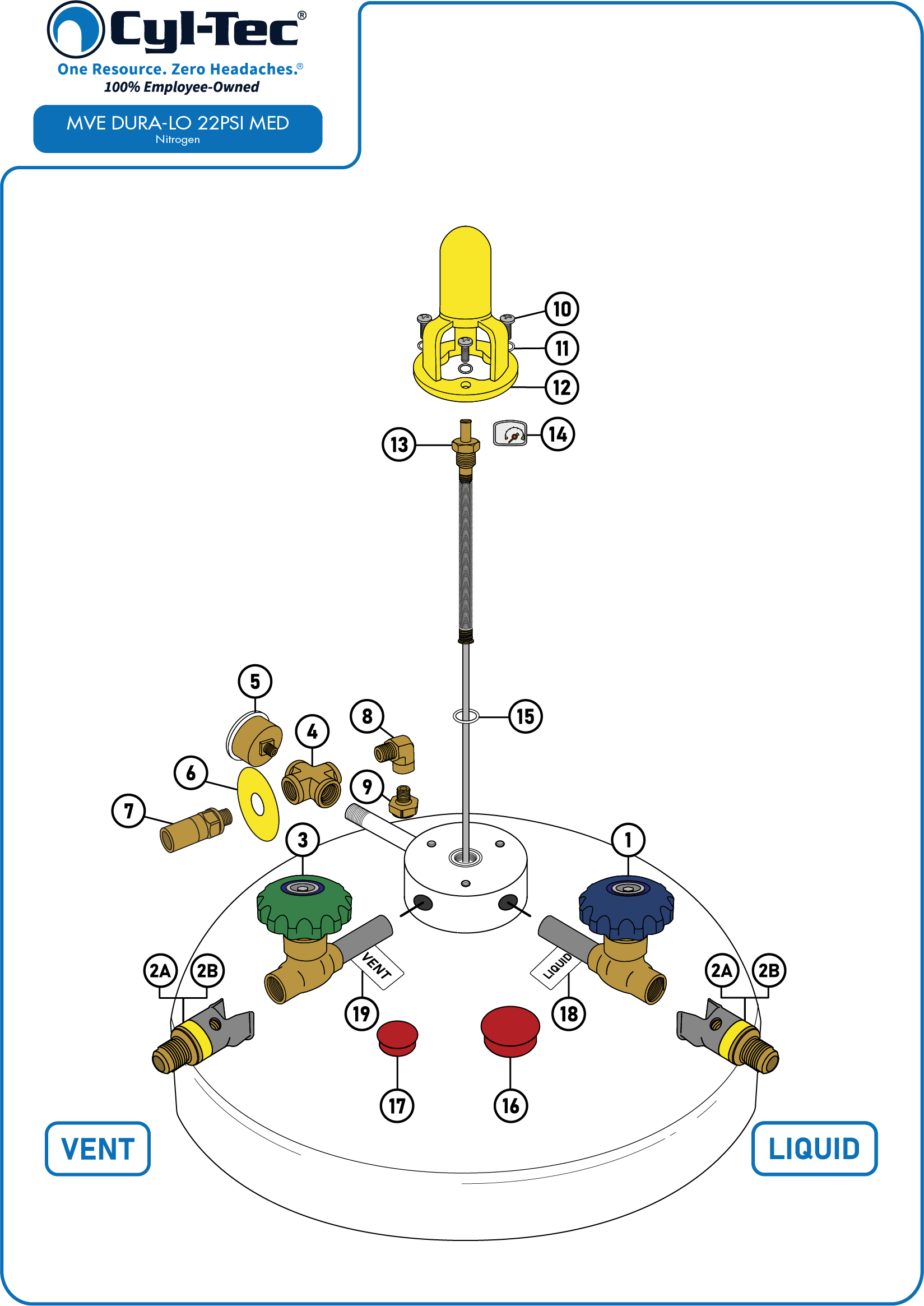

The Exploded Liquid Cylinder Diagrams offer a fast and straightforward method to identify the correct parts that correspond to the specific tank model you are working on!

How To Use:

Begin by choosing the Liquid Cylinder Brand you are working with. Next, select the Model, followed by the Pressure. Finally, choose the Industry & Gas Service relevant to the Liquid Cylinder you need.

Once you have made these selections, scroll down to the diagram or refer to the right-hand table to locate the parts you require.

The interactive diagram shown is a guide, as your tank may have undergone previous repairs that utilized different parts than those displayed.

 Use this diagram in conjunction with your tank to confirm the parts you need.

 Please contact Customer Service with any questions and/or concerns.

Brand

Model

Pressure

Industry & Gas Service

MVE DURA-LO 22PSI MED N
Valve, 3/8″ FNPT, 2″ Tube, Blue Handwheel Tamper Proof CGA Connection, CGA 295 Tamper Proof CGA Connection, CGA 295 Tamper Proof CGA Connection, CGA 295, REGO Lok Kit Tamper Proof CGA Connection, CGA 295, REGO Lok Kit Valve, 3/8″ FNPT, 2″ Tube, Green Handwheel Cross, 1/4″ FNPT, Brass Gauge, Center back mount, 2″, 100 PSI, 1/4″ MNPT Liquid Cylinder Safety Disk, 22 psi (Sold in Packs of 50) Pressure relief valve, 22 PSI, 1/4″ MNPT Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass Safety head burst disc, Range 180-200, 1/4″ MNPT Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50) Lock Washer, 1/4", Split (Sold in Packs of 50) Sight Gauge Protector, Yellow, LP, Chart style Float Rod Liquid Level Kit, 48" Float Rod, Spring, and Brass Indicator, Chart Style Snap-On Indicator N2, Chart style O-Ring for MVE Tanks Cap Annular Space, 1 3/4″, Polyethylene Cap Pumpout, 1 3/16″, Polyethylene Labels, Liquid Cylinder Valve, Liquid, pack 50 Labels, Liquid Cylinder Valve, Vent, pack 50

Valve, 3/8″ FNPT, 2″ Tube, Blue Handwheel

Part Information

Part #
CP-VLV-38F-2T-BL

Valve, 3/8" FNPT, 2" Tube, Blue Handwheel


Add to quote

Tamper Proof CGA Connection, CGA 295

Part Information

Part #
CP-TP-CGA295

Tamper Proof CGA Connection, CGA 295


Add to quote

Tamper Proof CGA Connection, CGA 295

Part Information

Part #
CP-TP-CGA295

Tamper Proof CGA Connection, CGA 295


Add to quote

Tamper Proof CGA Connection, CGA 295, REGO Lok Kit

Part Information

Part # CP-TP-CGA295-R

Tamper Proof CGA Connection, CGA 295, REGO-Lok Kit

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Tamper Proof CGA Connection, CGA 295, REGO Lok Kit

Part Information

Part # CP-TP-CGA295-R

Tamper Proof CGA Connection, CGA 295, REGO-Lok Kit

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Valve, 3/8″ FNPT, 2″ Tube, Green Handwheel

Part Information

Part #
CP-VLV-38F-2T-GR

Valve, 3/8" FNPT, 2" Tube, Green Handwheel


Add to quote

Cross, 1/4″ FNPT, Brass

Part Information

Part #
CP-CROSS-14F-BR

Cross, 1/4" FNPT, Brass


Add to quote

Gauge, Center back mount, 2″, 100 PSI, 1/4″ MNPT

Part Information

Part #
CP-G-CBM-100-14M

Gauge, Center Back Mount, 2", 100 psi, 1/4" MNPT


Add to quote

Liquid Cylinder Safety Disk, 22 psi (Sold in Packs of 50)

Part Information

Part #
CP-LCSD-22

Liquid Cylinder Safety Disk, 22 psi (Sold in Packs of 50)


Add to quote

Pressure relief valve, 22 PSI, 1/4″ MNPT

Part Information

Part #
CP-PRV-22-14

Pressure Relief Valve, 22 PSI, 1/4" MNPT


Add to quote

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass

Part Information

Part #
CP-ELB-90-14F-14M-BR

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass


Add to quote

Safety head burst disc, Range 180-200, 1/4″ MNPT

Part Information

Part #
CP-SH-LP-14

Safety Head Burst Disc, Range 180-200, 1/4" MNPT


Add to quote

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

Part Information

No Image

Part # CP-SCREW-14-20-SS

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Lock Washer, 1/4", Split (Sold in Packs of 50)

Part Information

No Image

Part # CP-LKWSH-14

Lock Washer, 1/4", Split (Sold in Packs of 50)

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Sight Gauge Protector, Yellow, LP, Chart style

Part Information

Part #
CP-SGP-YW-LP-C

Sight Gauge Protector, Yellow, LP, C style


Add to quote

Float Rod Liquid Level Kit, 48" Float Rod, Spring, and Brass Indicator, Chart Style

Part Information

No Image

Part # CP-FLRD-KIT-48-C

Float Rod Liquid Level Kit, 48" Float Rod, Spring, and Brass Indicator, C Style

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Snap-On Indicator N2, Chart style

Part Information

Part #
CP-SOI-N2-C

Snap-On Indicator N2, C style


Add to quote

O-Ring for MVE Tanks

Part Information

Part #
CP-ORING-C

O-Ring for C Style


Add to quote

Cap Annular Space, 1 3/4″, Polyethylene

Part Information

Part #
CP-CAP-134

Cap Annular Space, 1 3/4″, Polyethylene


Add to quote

Cap Pumpout, 1 3/16″, Polyethylene

Part Information

Part #
CP-CAP-1316

Cap Pumpout, 1 3/16″, Polyethylene


Add to quote

Labels, Liquid Cylinder Valve, Liquid, pack 50

Part Information

No Image

Part # CP-LBL-LIQ

Labels, Liquid Cylinder Valve, Liquid, 50 Pack

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Labels, Liquid Cylinder Valve, Vent, pack 50

Part Information

No Image

Part # CP-LBL-VENT

Labels, Liquid Cylinder Valve, Vent, 50 Pack

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Part Number
Description
Price
  • 1 CP-VLV-38F-2T-BL Valve, 3/8" FNPT, 2" Tube, Blue Handwheel
  • 2A CP-TP-CGA295 Tamper Proof CGA Connection, CGA 295
  • 2B CP-TP-CGA295-R Tamper Proof CGA Connection, CGA 295, REGO-Lok Kit
  • 3 CP-VLV-38F-2T-GR Valve, 3/8" FNPT, 2" Tube, Green Handwheel
  • 4 CP-CROSS-14F-BR Cross, 1/4" FNPT, Brass
  • 5 CP-G-CBM-100-14M Gauge, Center Back Mount, 2", 100 psi, 1/4" MNPT
  • 6 CP-LCSD-22 Liquid Cylinder Safety Disk, 22 psi (Sold in Packs of 50)
  • 7 CP-PRV-22-14 Pressure Relief Valve, 22 PSI, 1/4" MNPT
  • 8 CP-ELB-90-14F-14M-BR Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass
  • 9 CP-SH-LP-14 Safety Head Burst Disc, Range 180-200, 1/4" MNPT
  • 10 CP-SCREW-14-20-SS Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)
  • 11 CP-LKWSH-14 Lock Washer, 1/4", Split (Sold in Packs of 50)
  • 12 CP-SGP-YW-LP-C Sight Gauge Protector, Yellow, LP, C style
  • 13 CP-FLRD-KIT-48-C Float Rod Liquid Level Kit, 48" Float Rod, Spring, and Brass Indicator, C Style
  • 14 CP-SOI-N2-NS Snap-On Indicator N2, Neriki style
  • 15 CP-ORING-C O-Ring for C Style
  • 16 CP-CAP-134 Cap Annular Space, 1 3/4″, Polyethylene
  • 17 CP-CAP-134 Cap Annular Space, 1 3/4″, Polyethylene
  • 18 CP-LBL-LIQ Labels, Liquid Cylinder Valve, Liquid, 50 Pack
  • 19 CP-LBL-VENT Labels, Liquid Cylinder Valve, Vent, 50 Pack

The MVE DURA-LO 22PSI MED NITROGEN is a 22 PSI liquid cylinder for medical Nitrogen service, manufactured by Chart/MVE. This interactive parts diagram identifies the genuine replacement components for this model — including valves, regulators, fittings, gauges and pressure relief valves. Click any numbered hotspot on the diagram, or a row in the parts list, to view the matching Cyl-Tec part, check availability, and add it to your order or request a quote.
