XL-180 LP 22PSI IND OXYGEN

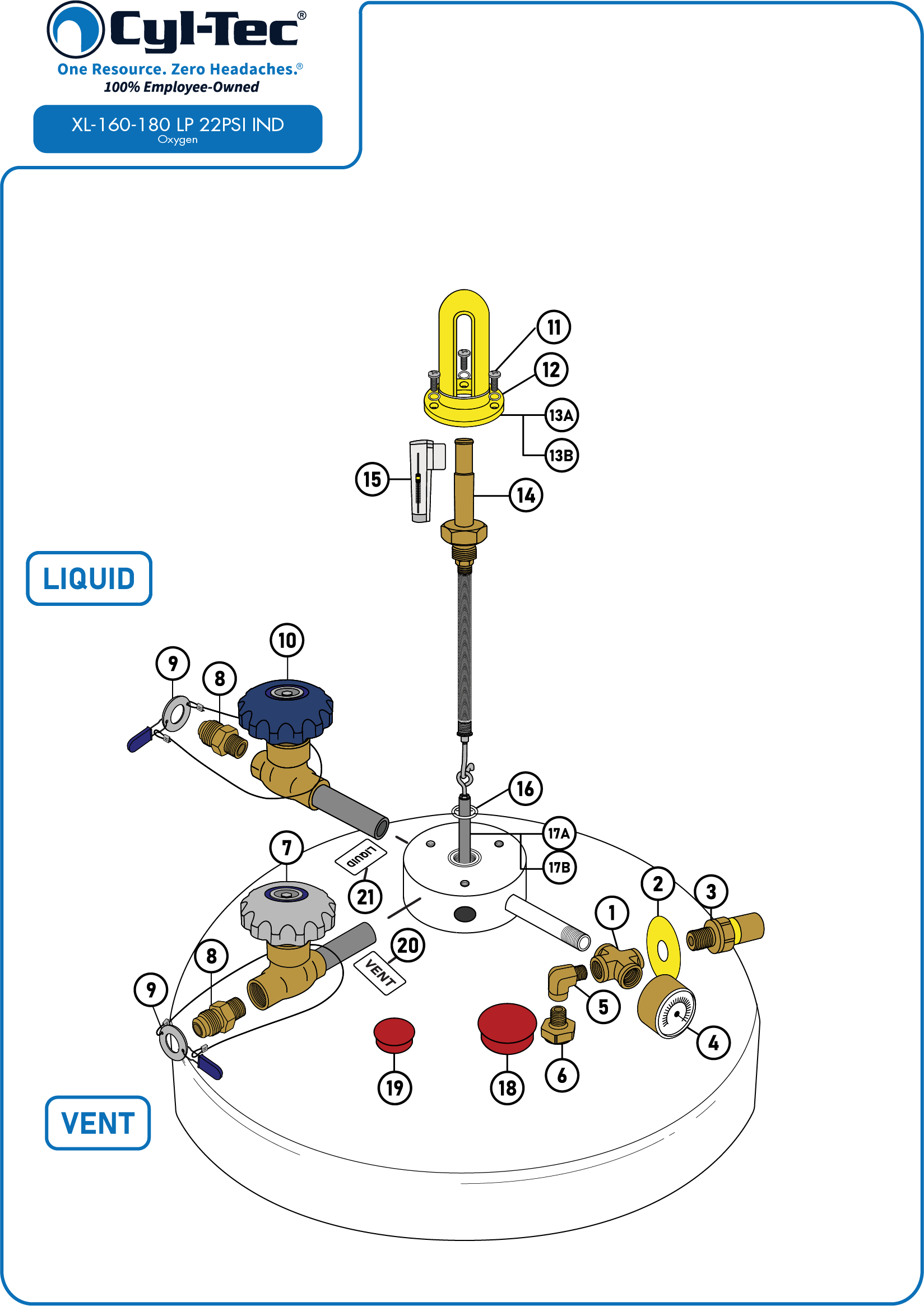

The Exploded Liquid Cylinder Diagrams offer a fast and straightforward method to identify the correct parts that correspond to the specific tank model you are working on!

How To Use:

Begin by choosing the Liquid Cylinder Brand you are working with. Next, select the Model, followed by the Pressure. Finally, choose the Industry & Gas Service relevant to the Liquid Cylinder you need.

Once you have made these selections, scroll down to the diagram or refer to the right-hand table to locate the parts you require.

The interactive diagram shown is a guide, as your tank may have undergone previous repairs that utilized different parts than those displayed.

 Use this diagram in conjunction with your tank to confirm the parts you need.

 Please contact Customer Service with any questions and/or concerns.

Brand

Model

Pressure

Industry & Gas Service

XL-180 LP 22PSI IND O
Cross, 1/4″ FNPT, Brass Liquid Cylinder Safety Disk, 22 psi (Sold in Packs of 50) Pressure relief valve, 22 PSI, 1/4″ MNPT Gauge, Center back mount, 2″, 100 PSI, 1/4″ MNPT Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass Safety Head Burst Disc, Range 180-200, 1/4″ MNPT Valve, 3/8″ FNPT, 1″ Tube, Silver Handwheel Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540 Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540 Valve, 3/8″ FNPT, 2″ Tube, Blue Handwheel Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50) Lock Washer, 1/4", Split (Sold in Packs of 50) Sight Gauge Protector, Yellow, LP, TW style Sight Gauge Protector, Short, Clear Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, TW Style Snap-On Indicator O2, TW style Gasket, TW Style Float Rod Kit, 44-7/8" Float Rod and Closed Threaded Eyelet, TW Style Level-Eye Kit, 54" Wand & Head, TW Style Cap annular space, 1 3/4″, Polyethylene Cap Pumpout, 1 3/16″, Polyethylene Labels, Liquid Cylinder Valve, Vent, Pack 50 Labels, Liquid Cylinder Valve, Liquid, Pack 50

Cross, 1/4″ FNPT, Brass

Part Information

Part #
CP-CROSS-14F-BR

Cross, 1/4" FNPT, Brass


Add to quote

Liquid Cylinder Safety Disk, 22 psi (Sold in Packs of 50)

Part Information

Part #
CP-LCSD-22

Liquid Cylinder Safety Disk, 22 psi (Sold in Packs of 50)


Add to quote

Pressure relief valve, 22 PSI, 1/4″ MNPT

Part Information

Part #
CP-PRV-22-14

Pressure Relief Valve, 22 PSI, 1/4" MNPT


Add to quote

Gauge, Center back mount, 2″, 100 PSI, 1/4″ MNPT

Part Information

Part #
CP-G-CBM-100-14M

Gauge, Center Back Mount, 2", 100 psi, 1/4" MNPT


Add to quote

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass

Part Information

Part #
CP-ELB-90-14F-14M-BR

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass


Add to quote

Safety Head Burst Disc, Range 180-200, 1/4″ MNPT

Part Information

Part #
CP-SH-LP-14

Safety Head Burst Disc, Range 180-200, 1/4" MNPT


Add to quote

Valve, 3/8″ FNPT, 1″ Tube, Silver Handwheel

Part Information

Part #
CP-VLV-38F-1T-SILVER

Valve, 3/8" FNPT, 1" Tube, Silver Handwheel


Add to quote

Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass

Part Information

Part #
CP-CGA440-38-BR

Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass


Add to quote

Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass

Part Information

Part #
CP-CGA440-38-BR

Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass


Add to quote

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540

Part Information

Part #
CP-RST-CKIT-LRGW

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540


Add to quote

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540

Part Information

Part #
CP-RST-CKIT-LRGW

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540


Add to quote

Valve, 3/8″ FNPT, 2″ Tube, Blue Handwheel

Part Information

Part #
CP-VLV-38F-2T-BL

Valve, 3/8" FNPT, 2" Tube, Blue Handwheel


Add to quote

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

Part Information

No Image

Part # CP-SCREW-14-20-SS

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Lock Washer, 1/4", Split (Sold in Packs of 50)

Part Information

No Image

Part # CP-LKWSH-14

Lock Washer, 1/4", Split (Sold in Packs of 50)

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Sight Gauge Protector, Yellow, LP, TW style

Part Information

Part #
CP-SGP-YW-LP-NS

Sight Gauge Protector, Yellow, LP, Neriki style


Add to quote

Sight Gauge Protector, Short, Clear

Part Information

Part #
CP-SGP-SHORT-CL

Sight Gauge Protector, Short, Clear


Add to quote

Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, TW Style

Part Information

Part # CP-FLRD-LL-KIT-NS

Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, Neriki Style

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Snap-On Indicator O2, TW style

Part Information

Part #
CP-SOI-O2-NS

Snap-On Indicator O2, Neriki style


Add to quote

Gasket, TW Style

Part Information

Part #
CP-GSK-NS

Gasket, Neriki-style


Add to quote

Float Rod Kit, 44-7/8" Float Rod and Closed Threaded Eyelet, TW Style

Part Information

No Image

Part # CP-FLRD-KIT-44-78-NS

Float Rod Kit, 44-7/8" Float Rod and Closed Threaded Eyelet, Neriki Style

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Level-Eye Kit, 54" Wand & Head, TW Style

Part Information

Part # CP-LEP-KIT-54-NS

Level-Eye Pro Kit, 54" Wand & Head, Neriki Style

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Cap annular space, 1 3/4″, Polyethylene

Part Information

Part #
CP-CAP-134

Cap Annular Space, 1 3/4″, Polyethylene


Add to quote

Cap Pumpout, 1 3/16″, Polyethylene

Part Information

Part #
CP-CAP-1316

Cap Pumpout, 1 3/16″, Polyethylene


Add to quote

Labels, Liquid Cylinder Valve, Vent, Pack 50

Part Information

Part #
CP-LBL-VENT

Labels, Liquid Cylinder, Vent Sticker, 50 Pack


Add to quote

Labels, Liquid Cylinder Valve, Liquid, Pack 50

Part Information

Part #
CP-LBL-LIQ

Labels, Liquid Cylinder, Liquid Sticker, 50 Pack


Add to quote

Part Number
Description
Price
  • 1 CP-CROSS-14F-BR Cross, 1/4" FNPT, Brass
  • 2 CP-LCSD-22 Liquid Cylinder Safety Disk, 22 psi (Sold in Packs of 50)
  • 3 CP-PRV-22-14 Pressure Relief Valve, 22 PSI, 1/4" MNPT
  • 4 CP-G-CBM-100-14M Gauge, Center Back Mount, 2", 100 psi, 1/4" MNPT
  • 5 CP-ELB-90-14F-14M-BR Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass
  • 6 CP-SH-LP-14 Safety Head Burst Disc, Range 180-200, 1/4" MNPT
  • 7 CP-VLV-38F-1T-SILVER Valve, 3/8" FNPT, 1" Tube, Silver Handwheel
  • 8 CP-CGA440-38-BR Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass
  • 9 CP-RST-CKIT-LRGW Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540
  • 10 CP-VLV-38F-2T-BL Valve, 3/8" FNPT, 2" Tube, Blue Handwheel
  • 11 CP-SCREW-14-20-SS Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)
  • 12 CP-LKWSH-14 Lock Washer, 1/4", Split (Sold in Packs of 50)
  • 13A CP-SGP-YW-LP-NS Sight Gauge Protector, Yellow, LP, Neriki style
  • 13B CP-SGP-SHORT-CL Sight Gauge Protector, Short, Clear
  • 14 CP-FLRD-LL-KIT-NS Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, Neriki Style
  • 15 CP-SOI-O2-NS Snap-On Indicator O2, Neriki style
  • 16 CP-GSK-NS Gasket, Neriki-style
  • 17A CP-FLRD-KIT-44-78-NS Float Rod Kit, 44-7/8" Float Rod and Closed Threaded Eyelet, Neriki Style
  • 17B CP-LEP-KIT-54-NS Level-Eye Pro Kit, 54" Wand & Head, Neriki Style
  • 18 CP-CAP-134 Cap Annular Space, 1 3/4″, Polyethylene
  • 19 CP-CAP-1316 Cap Pumpout, 1 3/16″, Polyethylene
  • 20 CP-LBL-VENT Labels, Liquid Cylinder, Vent Sticker, 50 Pack
  • 21 CP-LBL-LIQ Labels, Liquid Cylinder, Liquid Sticker, 50 Pack
About this tank

The XL-180 LP 22PSI IND OXYGEN is a 22 PSI low-pressure liquid cylinder for industrial Oxygen service, manufactured by TAYLOR WHARTON. This interactive parts diagram identifies the most likely replacement components for this model — including valves, regulators, fittings, gauges and pressure relief valves. Click any numbered hotspot on the diagram, or a row in the parts list, to view the matching Cyl-Tec part, check availability, and add it to your order or request a quote. Tanks in service are often repaired with a mix of parts over the years, so before ordering, double-check the part on your tank against the specs listed — or contact us and we'll help you confirm the right fit.
