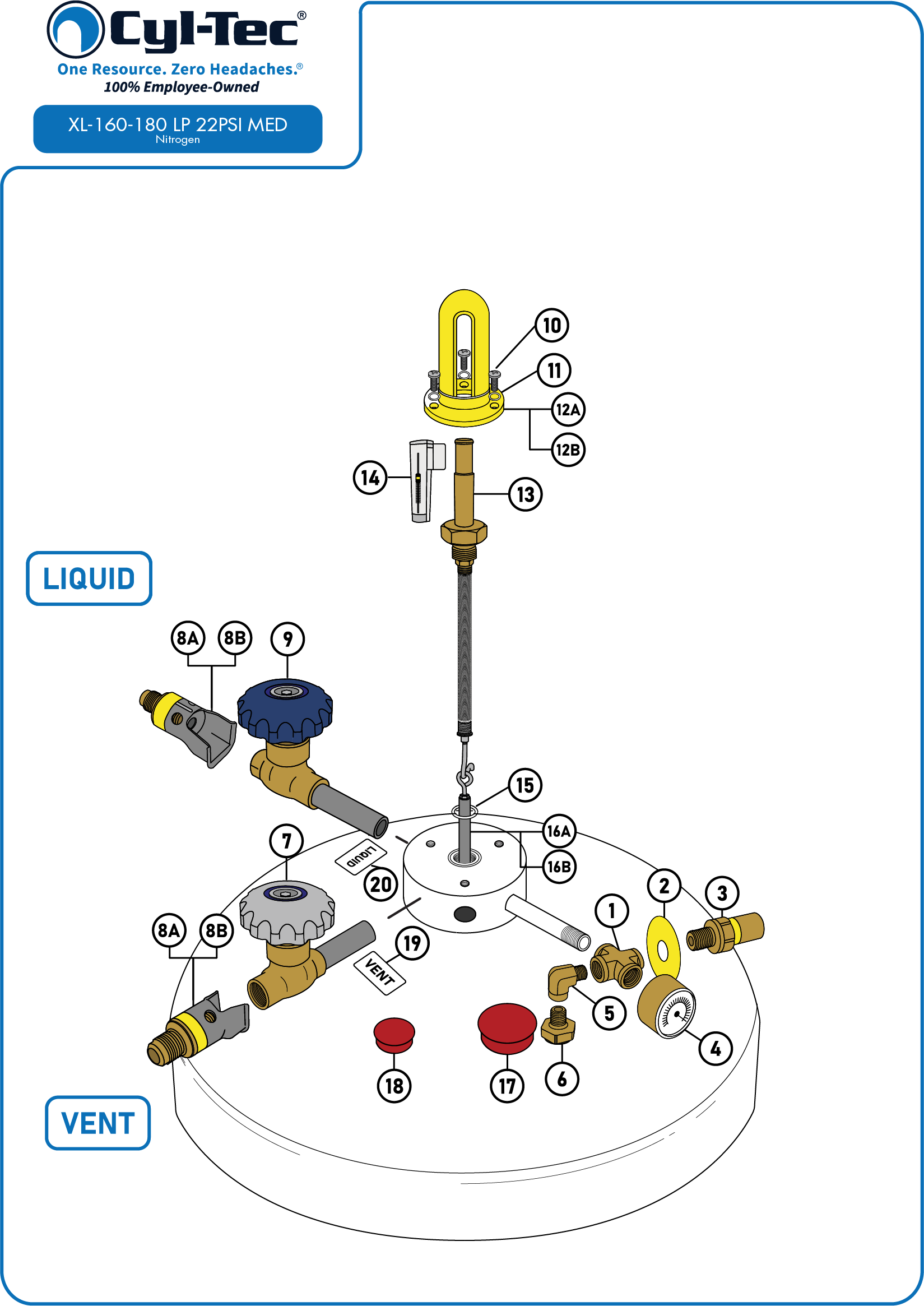

XL-180 LP 22PSI MED NITROGEN

The Exploded Liquid Cylinder Diagrams offer a fast and straightforward method to identify the correct parts that correspond to the specific tank model you are working on!

How To Use:

Begin by choosing the Liquid Cylinder Brand you are working with. Next, select the Model, followed by the Pressure. Finally, choose the Industry & Gas Service relevant to the Liquid Cylinder you need.

Once you have made these selections, scroll down to the diagram or refer to the right-hand table to locate the parts you require.

The interactive diagram shown is a guide, as your tank may have undergone previous repairs that utilized different parts than those displayed.

 Use this diagram in conjunction with your tank to confirm the parts you need.

 Please contact Customer Service with any questions and/or concerns.

Brand

Model

Pressure

Industry & Gas Service

XL-180 LP 22PSI MED N
Cross, 1/4″ FNPT, Brass Liquid Cylinder Safety Disk, 22 psi (Sold in Packs of 50) Pressure Relief Valve, 22 PSI, 1/4″ MNPT Gauge, Center Back Mount, 2″, 100 psi, 1/4″ MNPT Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass Safety Head Burst Disc, Range 180-200, 1/4″ MNPT Valve, 3/8″ FNPT, 1″ Tube, Silver Handwheel Tamper Proof CGA Connection, CGA 295 Tamper Proof CGA Connection, CGA 295 Tamper Proof CGA Connection, CGA 295, REGO Lok Kit Tamper Proof CGA Connection, CGA 295, REGO Lok Kit Valve, 3/8″ FNPT, 2″ Tube, Blue Handwheel Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50) Lock Washer, 1/4", Split (Sold in Packs of 50) Sight Gauge Protector, Yellow, LP, TW style Sight Gauge Protector, Short, Clear Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, TW Style Snap-On Indicator N2, TW style Gasket, TW Style Float Rod Kit, 44-7/8" Float Rod and Closed Threaded Eyelet, TW Style Level-Eye Kit, 54" Wand & Head, TW Style Cap Annular Space, 1 3/4″, Polyethylene Cap Pumpout, 1 3/16″, Polyethylene Labels, Liquid Cylinder Valve, Vent, pack 50 Labels, Liquid Cylinder Valve, Liquid, pack 50

Cross, 1/4″ FNPT, Brass

Part Information

Part #
CP-CROSS-14F-BR

Cross, 1/4" FNPT, Brass


Add to quote

Liquid Cylinder Safety Disk, 22 psi (Sold in Packs of 50)

Part Information

Part #
CP-LCSD-22

Liquid Cylinder Safety Disk, 22 psi (Sold in Packs of 50)


Add to quote

Pressure Relief Valve, 22 PSI, 1/4″ MNPT

Part Information

Part #
CP-PRV-22-14

Pressure Relief Valve, 22 PSI, 1/4" MNPT


Add to quote

Gauge, Center Back Mount, 2″, 100 psi, 1/4″ MNPT

Part Information

Part #
CP-G-CBM-100-14M

Gauge, Center Back Mount, 2", 100 psi, 1/4" MNPT


Add to quote

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass

Part Information

Part #
CP-ELB-90-14F-14M-BR

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass


Add to quote

Safety Head Burst Disc, Range 180-200, 1/4″ MNPT

Part Information

Part #
CP-SH-LP-14

Safety Head Burst Disc, Range 180-200, 1/4" MNPT


Add to quote

Valve, 3/8″ FNPT, 1″ Tube, Silver Handwheel

Part Information

Part #
CP-VLV-38F-1T-SILVER

Valve, 3/8" FNPT, 1" Tube, Silver Handwheel


Add to quote

Tamper Proof CGA Connection, CGA 295

Part Information

Part #
CP-TP-CGA295

Tamper Proof CGA Connection, CGA 295


Add to quote

Tamper Proof CGA Connection, CGA 295

Part Information

Part #
CP-TP-CGA295

Tamper Proof CGA Connection, CGA 295


Add to quote

Tamper Proof CGA Connection, CGA 295, REGO Lok Kit

Part Information

Part # CP-TP-CGA295-R

Tamper Proof CGA Connection, CGA 295, REGO-Lok Kit

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Tamper Proof CGA Connection, CGA 295, REGO Lok Kit

Part Information

Part # CP-TP-CGA295-R

Tamper Proof CGA Connection, CGA 295, REGO-Lok Kit

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Valve, 3/8″ FNPT, 2″ Tube, Blue Handwheel

Part Information

Part #
CP-VLV-38F-2T-BL

Valve, 3/8" FNPT, 2" Tube, Blue Handwheel


Add to quote

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

Part Information

No Image

Part # CP-SCREW-14-20-SS

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Lock Washer, 1/4", Split (Sold in Packs of 50)

Part Information

No Image

Part # CP-LKWSH-14

Lock Washer, 1/4", Split (Sold in Packs of 50)

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Sight Gauge Protector, Yellow, LP, TW style

Part Information

Part #
CP-SGP-YW-LP-NS

Sight Gauge Protector, Yellow, LP, Neriki style


Add to quote

Sight Gauge Protector, Short, Clear

Part Information

Part #
CP-SGP-SHORT-CL

Sight Gauge Protector, Short, Clear


Add to quote

Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, TW Style

Part Information

Part # CP-FLRD-LL-KIT-NS

Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, Neriki Style

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Snap-On Indicator N2, TW style

Part Information

Part #
CP-SOI-N2-NS

Snap-On Indicator N2, Neriki style


Add to quote

Gasket, TW Style

Part Information

Part #
CP-GSK-NS

Gasket, Neriki-style


Add to quote

Float Rod Kit, 44-7/8" Float Rod and Closed Threaded Eyelet, TW Style

Part Information

No Image

Part # CP-FLRD-KIT-44-78-NS

Float Rod Kit, 44-7/8" Float Rod and Closed Threaded Eyelet, Neriki Style

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Level-Eye Kit, 54" Wand & Head, TW Style

Part Information

Part # CP-LEP-KIT-54-NS

Level-Eye Pro Kit, 54" Wand & Head, Neriki Style

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Cap Annular Space, 1 3/4″, Polyethylene

Part Information

Part #
CP-CAP-134

Cap Annular Space, 1 3/4″, Polyethylene


Add to quote

Cap Pumpout, 1 3/16″, Polyethylene

Part Information

Part #
CP-CAP-1316

Cap Pumpout, 1 3/16″, Polyethylene


Add to quote

Labels, Liquid Cylinder Valve, Vent, pack 50

Part Information

Part #
CP-LBL-VENT

Labels, Liquid Cylinder, Vent Sticker, 50 Pack


Add to quote

Labels, Liquid Cylinder Valve, Liquid, pack 50

Part Information

Part #
CP-LBL-LIQ

Labels, Liquid Cylinder, Liquid Sticker, 50 Pack


Add to quote

Part Number
Description
Price
  • 1 CP-CROSS-14F-BR Cross, 1/4" FNPT, Brass
  • 2 CP-LCSD-22 Liquid Cylinder Safety Disk, 22 psi (Sold in Packs of 50)
  • 3 CP-PRV-22-14 Pressure Relief Valve, 22 PSI, 1/4" MNPT
  • 4 CP-G-CBM-100-14M Gauge, Center Back Mount, 2", 100 psi, 1/4" MNPT
  • 5 CP-ELB-90-14F-14M-BR Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass
  • 6 CP-SH-LP-14 Safety Head Burst Disc, Range 180-200, 1/4" MNPT
  • 7 CP-VLV-38F-1T-SILVER Valve, 3/8" FNPT, 1" Tube, Silver Handwheel
  • 8A CP-TP-CGA295 Tamper Proof CGA Connection, CGA 295
  • 8B CP-TP-CGA295-R Tamper Proof CGA Connection, CGA 295, REGO-Lok Kit
  • 9 CP-VLV-38F-2T-BL Valve, 3/8" FNPT, 2" Tube, Blue Handwheel
  • 10 CP-SCREW-14-20-SS Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)
  • 11 CP-LKWSH-14 Lock Washer, 1/4", Split (Sold in Packs of 50)
  • 12A CP-SGP-YW-LP-NS Sight Gauge Protector, Yellow, LP, Neriki style
  • 12B CP-SGP-SHORT-CL Sight Gauge Protector, Short, Clear
  • 13 CP-FLRD-LL-KIT-NS Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, Neriki Style
  • 14 CP-SOI-N2-NS Snap-On Indicator N2, Neriki style
  • 15 CP-GSK-NS Gasket, Neriki-style
  • 16A CP-FLRD-KIT-44-78-NS Float Rod Kit, 44-7/8" Float Rod and Closed Threaded Eyelet, Neriki Style
  • 16B CP-LEP-KIT-54-NS Level-Eye Pro Kit, 54" Wand & Head, Neriki Style
  • 17 CP-CAP-134 Cap Annular Space, 1 3/4″, Polyethylene
  • 18 CP-CAP-1316 Cap Pumpout, 1 3/16″, Polyethylene
  • 19 CP-LBL-VENT Labels, Liquid Cylinder, Vent Sticker, 50 Pack
  • 20 CP-LBL-LIQ Labels, Liquid Cylinder, Liquid Sticker, 50 Pack
About this tank

The XL-180 LP 22PSI MED NITROGEN is a 22 PSI low-pressure liquid cylinder for medical Nitrogen service, manufactured by TAYLOR WHARTON. This interactive parts diagram identifies the most likely replacement components for this model — including valves, regulators, fittings, gauges and pressure relief valves. Click any numbered hotspot on the diagram, or a row in the parts list, to view the matching Cyl-Tec part, check availability, and add it to your order or request a quote. Tanks in service are often repaired with a mix of parts over the years, so before ordering, double-check the part on your tank against the specs listed — or contact us and we'll help you confirm the right fit.
