XL-55HP COMBO 350PSI IND OXYGEN

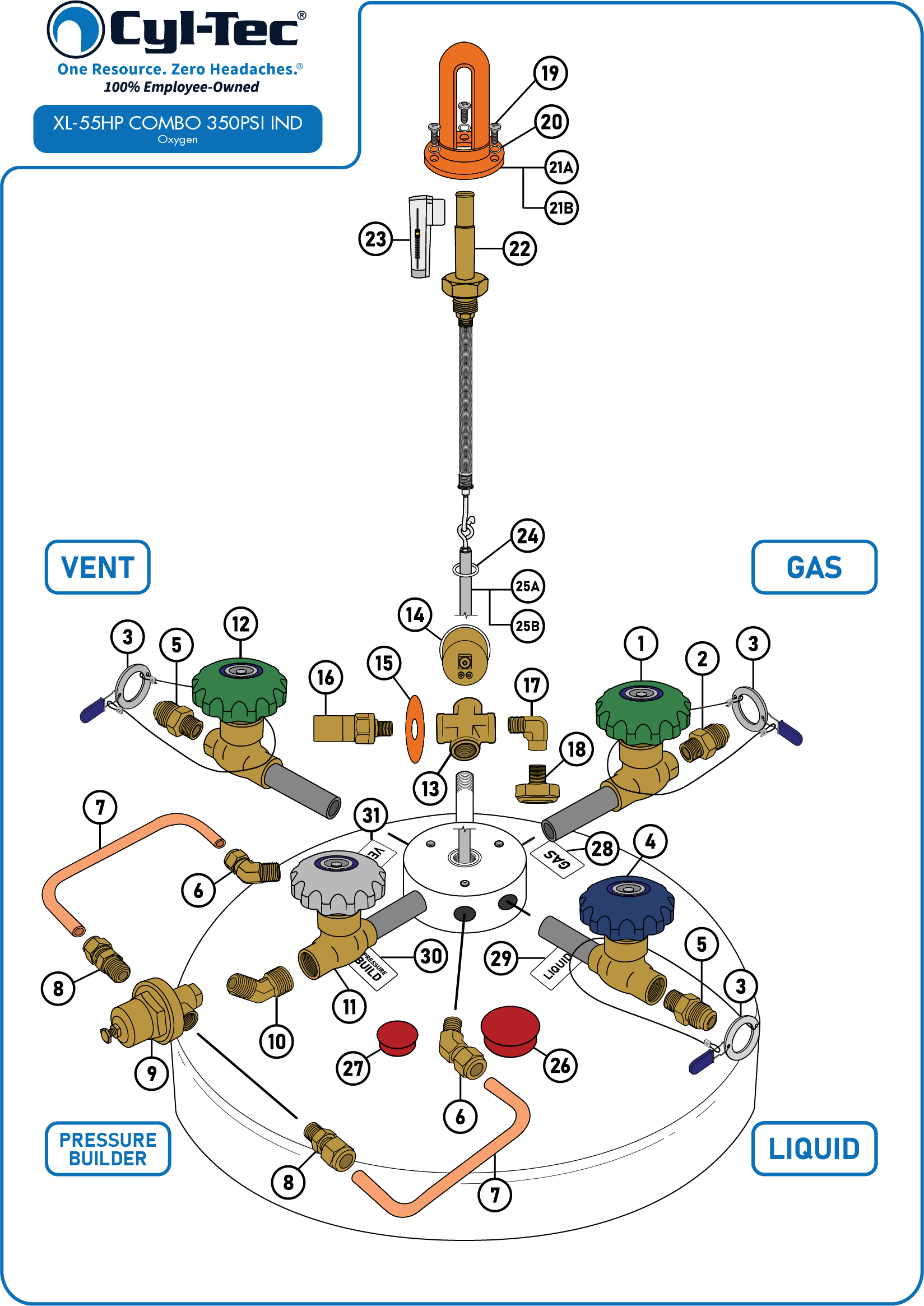

The Exploded Liquid Cylinder Diagrams offer a fast and straightforward method to identify the correct parts that correspond to the specific tank model you are working on!

How To Use:

Begin by choosing the Liquid Cylinder Brand you are working with. Next, select the Model, followed by the Pressure. Finally, choose the Industry & Gas Service relevant to the Liquid Cylinder you need.

Once you have made these selections, scroll down to the diagram or refer to the right-hand table to locate the parts you require.

The interactive diagram shown is a guide, as your tank may have undergone previous repairs that utilized different parts than those displayed.

 Use this diagram in conjunction with your tank to confirm the parts you need.

 Please contact Customer Service with any questions and/or concerns.

Brand

Model

Pressure

Industry & Gas Service

XL-55HP COMBO 350PSI IND O
Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel Fitting CGA 540 Liquid/Vent, 3/8" MNPT, Brass Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540 Valve, 3/8" FNPT, 2" Tube, Blue Handwheel Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540 Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540 Elbow 45 , 3/8″ ODT x 1/4″ MNPT, Brass Elbow 45 , 3/8″ ODT x 1/4″ MNPT, Brass Copper Tube, 3/8″ x 7″ Copper Tube, 3/8″ x 7″ Fitting, 3/8″ ODT x 1/4″ MNPT, Brass Fitting, 3/8″ ODT x 1/4″ MNPT, Brass Regulator Cryo, Combo, 300 psi, 1/4"FNPT, TW Style Elbow 45, MNPT 1/4″ x MNPT 3/8″, Brass Valve, 3/8" FNPT, 1" Tube, Silver Handwheel Valve, 3/8" FNPT, 2" Tube, Green Handwheel Cross, 1/4″ FNPT, Brass Gauge, Center back mount, 2″, 600 PSI, 1/4″ MNPT Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50) Pressure relief valve, 350 PSI, 1/4″ MNPT Elbow 90, 1/4″ FNPT x 1/4″ MNPT, Brass Safety head burst disc, Range 480-585 PSIG, 1/4″ MNPT Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50) Lock Washer, 1/4", Split (Sold in Packs of 50) Sight Gauge Protector, Orange, HP, TW style Sight Gauge Protector, Short, Clear Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, TW Style Snap-On Indicator O2, TW style Gasket for TW Tanks Float Rod Kit, 44-7/8" Float Rod and Closed Threaded Eyelet, TW Style Level-Eye Kit, 54" Wand & Head, TW Style Cap Annular Space, 1 3/4″, Polyethylene Cap Pumpout, 1 3/16″, Polyethylene Labels, Liquid Cylinder Valve, Gas, pack 50 Labels, Liquid Cylinder Valve, Liquid, Pack 50 Labels, Liquid Cylinder Valve, Pressure Builder, Pack 50 Labels, Liquid Cylinder Valve, Vent, Pack 50

Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel

Fitting CGA 540 Liquid/Vent, 3/8" MNPT, Brass

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540

Valve, 3/8" FNPT, 2" Tube, Blue Handwheel

Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass

Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540

Elbow 45 , 3/8″ ODT x 1/4″ MNPT, Brass

Elbow 45 , 3/8″ ODT x 1/4″ MNPT, Brass

Copper Tube, 3/8″ x 7″

Copper Tube, 3/8″ x 7″

Fitting, 3/8″ ODT x 1/4″ MNPT, Brass

Fitting, 3/8″ ODT x 1/4″ MNPT, Brass

Regulator Cryo, Combo, 300 psi, 1/4"FNPT, TW Style

Elbow 45, MNPT 1/4″ x MNPT 3/8″, Brass

Valve, 3/8" FNPT, 1" Tube, Silver Handwheel

Valve, 3/8" FNPT, 2" Tube, Green Handwheel

Cross, 1/4″ FNPT, Brass

Gauge, Center back mount, 2″, 600 PSI, 1/4″ MNPT

Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50)

Pressure relief valve, 350 PSI, 1/4″ MNPT

Elbow 90, 1/4″ FNPT x 1/4″ MNPT, Brass

Safety head burst disc, Range 480-585 PSIG, 1/4″ MNPT

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

Lock Washer, 1/4", Split (Sold in Packs of 50)

Sight Gauge Protector, Orange, HP, TW style

Sight Gauge Protector, Short, Clear

Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, TW Style

Snap-On Indicator O2, TW style

Gasket for TW Tanks

Float Rod Kit, 44-7/8" Float Rod and Closed Threaded Eyelet, TW Style

Level-Eye Kit, 54" Wand & Head, TW Style

Cap Annular Space, 1 3/4″, Polyethylene

Cap Pumpout, 1 3/16″, Polyethylene

Labels, Liquid Cylinder Valve, Gas, pack 50

Labels, Liquid Cylinder Valve, Liquid, Pack 50

Labels, Liquid Cylinder Valve, Pressure Builder, Pack 50

Labels, Liquid Cylinder Valve, Vent, Pack 50

Part Number
Description
Price
  • 1 CP-VLV-38F-314T-GR Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel
  • 2 CP-CGA540-38-BR Fitting CGA 540 Liquid/Vent, 3/8" MNPT, Brass
  • 3 CP-RST-CKIT-LRGW Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540
  • 4 CP-VLV-38F-2T-BL Valve, 3/8" FNPT, 2" Tube, Blue Handwheel
  • 5 CP-CGA440-38-BR Fitting CGA 440 Liquid/Vent, 3/8" MNPT, Brass
  • 6 CP-ELB-45-38OD-14M-BR Elbow 45, 3/8" ODT x 1/4" MNPT, Brass
  • 7 CP-TUBE-COPPER-38-7 Copper Tube, 3/8″ x 7″
  • 8 CP-FIT-38OD-14M-BR Fitting, 3/8" ODT x 1/4" MNPT, Brass
  • 9 CP-COMBO-HP-14-H Regulator Cryo, Combo, High Pressure, Spring range 150 - 350 psi, 1/4" FNPT, Set point 300 psi, H Style, RegO
  • 10 CP-ELB-45-14M-38M-BR Elbow 45, 1/4" MNPT x 3/8" MNPT, Brass
  • 11 CP-VLV-38F-1T-SILVER Valve, 3/8" FNPT, 1" Tube, Silver Handwheel
  • 12 CP-VLV-38F-2T-GR Valve, 3/8" FNPT, 2" Tube, Green Handwheel
  • 13 CP-CROSS-14F-BR Cross, 1/4" FNPT, Brass
  • 14 CP-G-CBM-600-14M Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT
  • 15 CP-LCSD-350 Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50)
  • 16 CP-PRV-350-14 Pressure Relief Valve, 350 PSI, 1/4″ MNPT
  • 17 CP-ELB-90-14F-14M-BR Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass
  • 18 CP-SH-HP-14 Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT
  • 19 CP-SCREW-14-20-SS Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)
  • 20 CP-LKWSH-14 Lock Washer, 1/4", Split (Sold in Packs of 50)
  • 21A CP-SGP-OR-HP-NS Sight gauge protector, Orange, HP, Neriki style
  • 21B CP-SGP-SHORT-CL Sight Gauge Protector, Short, Clear
  • 22 CP-FLRD-LL-KIT-NS Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, Neriki Style
  • 23 CP-SOI-O2-NS Snap-On Indicator O2, Neriki style
  • 24 CP-GSK-NS Gasket, Neriki-style
  • 25A CP-FLRD-KIT-44-78-NS Float Rod Kit, 44-7/8" Float Rod and Closed Threaded Eyelet, Neriki Style
  • 25B CP-LEP-KIT-54-NS Level-Eye Pro Kit, 54" Wand & Head, Neriki Style
  • 26 CP-CAP-134 Cap Annular Space, 1 3/4″, Polyethylene
  • 27 CP-CAP-1316 Cap Pumpout, 1 3/16″, Polyethylene
  • 28 CP-LBL-GAS Labels, Liquid Cylinder Valve, Gas, 50 Pack
  • 29 CP-LBL-LIQ Labels, Liquid Cylinder Valve, Liquid, 50 Pack
  • 30 CP-LBL-PB Labels, Liquid Cylinder Valve, Pressure Builder, 50 Pack
  • 31 CP-LBL-VENT Labels, Liquid Cylinder Valve, Vent, 50 Pack
