XL-55HP PB-ECONO PRE-1998 IND CARBON DIOXIDE

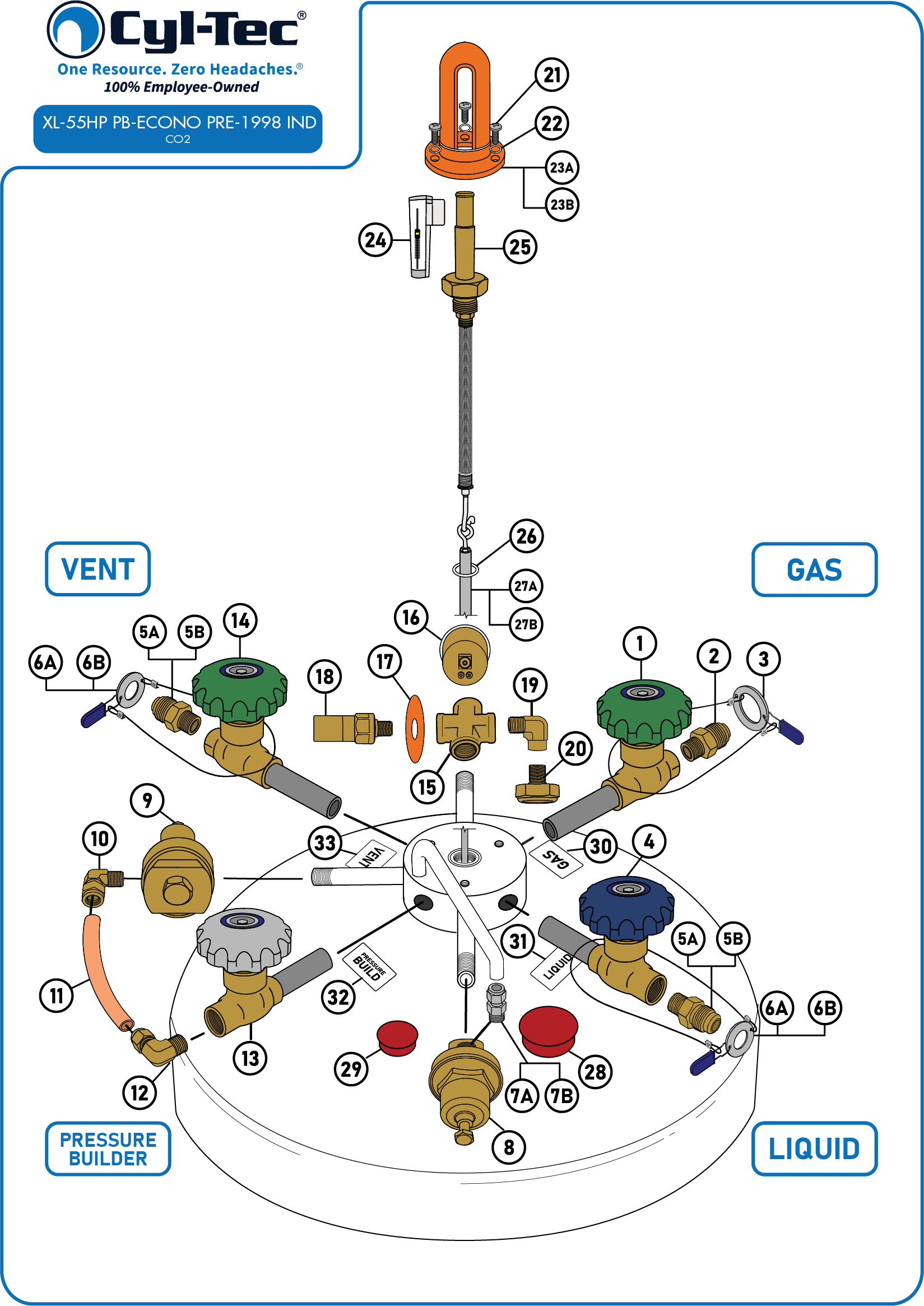

The Exploded Liquid Cylinder Diagrams offer a fast and straightforward method to identify the correct parts that correspond to the specific tank model you are working on!

How To Use:

Begin by choosing the Liquid Cylinder Brand you are working with. Next, select the Model, followed by the Pressure. Finally, choose the Industry & Gas Service relevant to the Liquid Cylinder you need.

Once you have made these selections, scroll down to the diagram or refer to the right-hand table to locate the parts you require.

The interactive diagram shown is a guide, as your tank may have undergone previous repairs that utilized different parts than those displayed.

 Use this diagram in conjunction with your tank to confirm the parts you need.

 Please contact Customer Service with any questions and/or concerns.

Brand

Model

Pressure

Industry & Gas Service

XL-55HP PB-ECONO PRE-1998 IND CO2
Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel Fitting CGA 320 Liquid/Vent, 3/8" MNPT, Brass Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540 Valve, 3/8" FNPT, 2" Tube, Blue Handwheel Fitting CGA 295 Liquid/Vent, 3/8" MNPT, Brass Fitting CGA 295 Liquid/Vent, 3/8" MNPT, Brass Fitting CGA 622 Liquid/Vent, 3/8" MNPT, Brass Fitting CGA 622 Liquid/Vent, 3/8" MNPT, Brass Fitting, 3/8″ ODT x 1/4″ MNPT, Stainless Steel 316 Elbow 90, 3/8″ ODT x 1/4″ MNPT, Stainless Steel 316 Regulator Cryo, Econ, 325 psi, ¼" FNPT Regulator Cryo, PB, 300 psi, ¼" FNPT Elbow 90, 3/8" ODT x 1/4" MNPT, Brass Copper Tube, 3/8″ x 7″ Elbow 90, 3/8" ODT x 3/8" MNPT, Brass Valve, 3/8" FNPT, 1" Tube, Silver Handwheel Valve, 3/8" FNPT, 2" Tube, Green Handwheel Cross, 1/4" FNPT, Brass Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50) Pressure Relief Valve, 350 PSI, 1/4" MNPT Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50) Lock Washer, 1/4", Split (Sold in Packs of 50) Sight Gauge Protector, Orange, HP, TW style Sight Gauge Protector, Short, Clear Snap-On Indicator CO2, TW style Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, TW Style Gasket for TW Tanks Float Rod, 42-15/16" Float Rod, 33-1/8" Cap Annular Space, 1 3/4″, Polyethylene Cap Pumpout, 1 3/16″, Polyethylene Labels, Liquid Cylinder Valve, Gas, Pack 50 Labels, Liquid Cylinder Valve, Liquid, Pack 50 Labels, Liquid Cylinder Valve, Pressure Builder, Pack 50 Labels, Liquid Cylinder Valve, Vent, Pack 50 Cable Restraint Kit, Small Washer, CGA295 Cable Restraint Kit, Small Washer, CGA295 Cable Restraint Kit, X-Large Washer, CGA622/CGA624 Cable Restraint Kit, X-Large Washer, CGA622/CGA624

Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel

Fitting CGA 320 Liquid/Vent, 3/8" MNPT, Brass

Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540

Valve, 3/8" FNPT, 2" Tube, Blue Handwheel

Fitting CGA 295 Liquid/Vent, 3/8" MNPT, Brass

Fitting CGA 295 Liquid/Vent, 3/8" MNPT, Brass

Fitting CGA 622 Liquid/Vent, 3/8" MNPT, Brass

Fitting CGA 622 Liquid/Vent, 3/8" MNPT, Brass

Fitting, 3/8″ ODT x 1/4″ MNPT, Stainless Steel 316

Elbow 90, 3/8″ ODT x 1/4″ MNPT, Stainless Steel 316

Regulator Cryo, Econ, 325 psi, ¼" FNPT

Regulator Cryo, PB, 300 psi, ¼" FNPT

Elbow 90, 3/8" ODT x 1/4" MNPT, Brass

Copper Tube, 3/8″ x 7″

Elbow 90, 3/8" ODT x 3/8" MNPT, Brass

Valve, 3/8" FNPT, 1" Tube, Silver Handwheel

Valve, 3/8" FNPT, 2" Tube, Green Handwheel

Cross, 1/4" FNPT, Brass

Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT

Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50)

Pressure Relief Valve, 350 PSI, 1/4" MNPT

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass

Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

Lock Washer, 1/4", Split (Sold in Packs of 50)

Sight Gauge Protector, Orange, HP, TW style

Sight Gauge Protector, Short, Clear

Snap-On Indicator CO2, TW style

Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, TW Style

Gasket for TW Tanks

Float Rod, 42-15/16"

Float Rod, 33-1/8"

Cap Annular Space, 1 3/4″, Polyethylene

Cap Pumpout, 1 3/16″, Polyethylene

Labels, Liquid Cylinder Valve, Gas, Pack 50

Labels, Liquid Cylinder Valve, Liquid, Pack 50

Labels, Liquid Cylinder Valve, Pressure Builder, Pack 50

Labels, Liquid Cylinder Valve, Vent, Pack 50

Cable Restraint Kit, Small Washer, CGA295

Cable Restraint Kit, Small Washer, CGA295

Cable Restraint Kit, X-Large Washer, CGA622/CGA624

Cable Restraint Kit, X-Large Washer, CGA622/CGA624

Part Number
Description
Price
  • 1 CP-VLV-38F-314T-GR Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel
  • 2 CP-CGA320-38-BR Fitting CGA 320 Liquid/Vent, 3/8" MNPT, Brass
  • 3 CP-RST-CKIT-LRGW Cable Restraint Kit, Large Washer, CGA320/CGA326/CGA440/CGA540
  • 4 CP-VLV-38F-2T-BL Valve, 3/8" FNPT, 2" Tube, Blue Handwheel
  • 5A CP-CGA295-38-BR Fitting CGA 295 Liquid/Vent, 3/8" MNPT, Brass
  • 5B CP-CGA622-38-BR Fitting CGA 622 Liquid/Vent, 3/8" MNPT, Brass
  • 6A CP-RST-CKIT-SMLW Cable Restraint Kit, Small Washer, CGA295
  • 6B CP-RST-CKIT-XLRGW Cable Restraint Kit, X-Large Washer, CGA622/CGA624
  • 7A CP-FIT-38OD-14M-SS316 Fitting, 3/8" ODT x 1/4" MNPT, Stainless Steel 316
  • 7B CP-ELB-90-38OD-14M-SS316 Elbow 90, 3/8" ODT x 1/4" MNPT, Stainless Steel 316
  • 8 CP-ECON-HP-14-R Regulator Cryo, Econ, High Pressure, Spring range 150 - 350 psi, ¼" FNPT, Set point 325 psi, RegO
  • 9 CP-PB-HP-14 Regulator Cryo, PB, High Pressure, Spring range 125 - 350 psi, 1/4" FNPT, Set point 300 psi, RegO
  • 10 CP-ELB-90-38OD-14M-BR Elbow 90, 3/8" ODT x 1/4" MNPT, Brass
  • 11 CP-TUBE-COPPER-38-7 Copper Tube, 3/8″ x 7″
  • 12 CP-ELB-90-38OD-38M-BR Elbow 90, 3/8" ODT x 3/8" MNPT, Brass
  • 13 CP-VLV-38F-1T-SILVER Valve, 3/8" FNPT, 1" Tube, Silver Handwheel
  • 14 CP-VLV-38F-2T-GR Valve, 3/8" FNPT, 2" Tube, Green Handwheel
  • 15 CP-CROSS-14F-BR Cross, 1/4" FNPT, Brass
  • 16 CP-G-CBM-600-14M Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT
  • 17 CP-LCSD-350 Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50)
  • 18 CP-PRV-350-14 Pressure Relief Valve, 350 PSI, 1/4″ MNPT
  • 19 CP-ELB-90-14F-14M-BR Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass
  • 20 CP-SH-HP-14 Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT
  • 21 CP-SCREW-14-20-SS Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)
  • 22 CP-LKWSH-14 Lock Washer, 1/4", Split (Sold in Packs of 50)
  • 23A CP-SGP-OR-HP-NS Sight gauge protector, Orange, HP, Neriki style
  • 23B CP-SGP-SHORT-CL Sight Gauge Protector, Short, Clear
  • 24 CP-SOI-CO2-NS Snap-On Indicator CO2, Neriki style
  • 25 CP-FLRD-LL-KIT-NS Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, Neriki Style
  • 26 CP-GSK-NS Gasket, Neriki-style
  • 27A CP-FLRD-KIT-NS Float Rod, Neriki Style
  • 27B CP-LEP-KIT-NS Level-Eye Pro Kit, Neriki Style
  • 28 CP-CAP-134 Cap Annular Space, 1 3/4″, Polyethylene
  • 29 CP-CAP-1316 Cap Pumpout, 1 3/16″, Polyethylene
  • 30 CP-LBL-GAS Labels, Liquid Cylinder Valve, Gas, 50 Pack
  • 31 CP-LBL-LIQ Labels, Liquid Cylinder Valve, Liquid, 50 Pack
  • 32 CP-LBL-PB Labels, Liquid Cylinder Valve, Pressure Builder, 50 Pack
  • 33 CP-LBL-VENT Labels, Liquid Cylinder Valve, Vent, 50 Pack
