XL-55HP PB-ECONO PRE-1998 MED OXYGEN

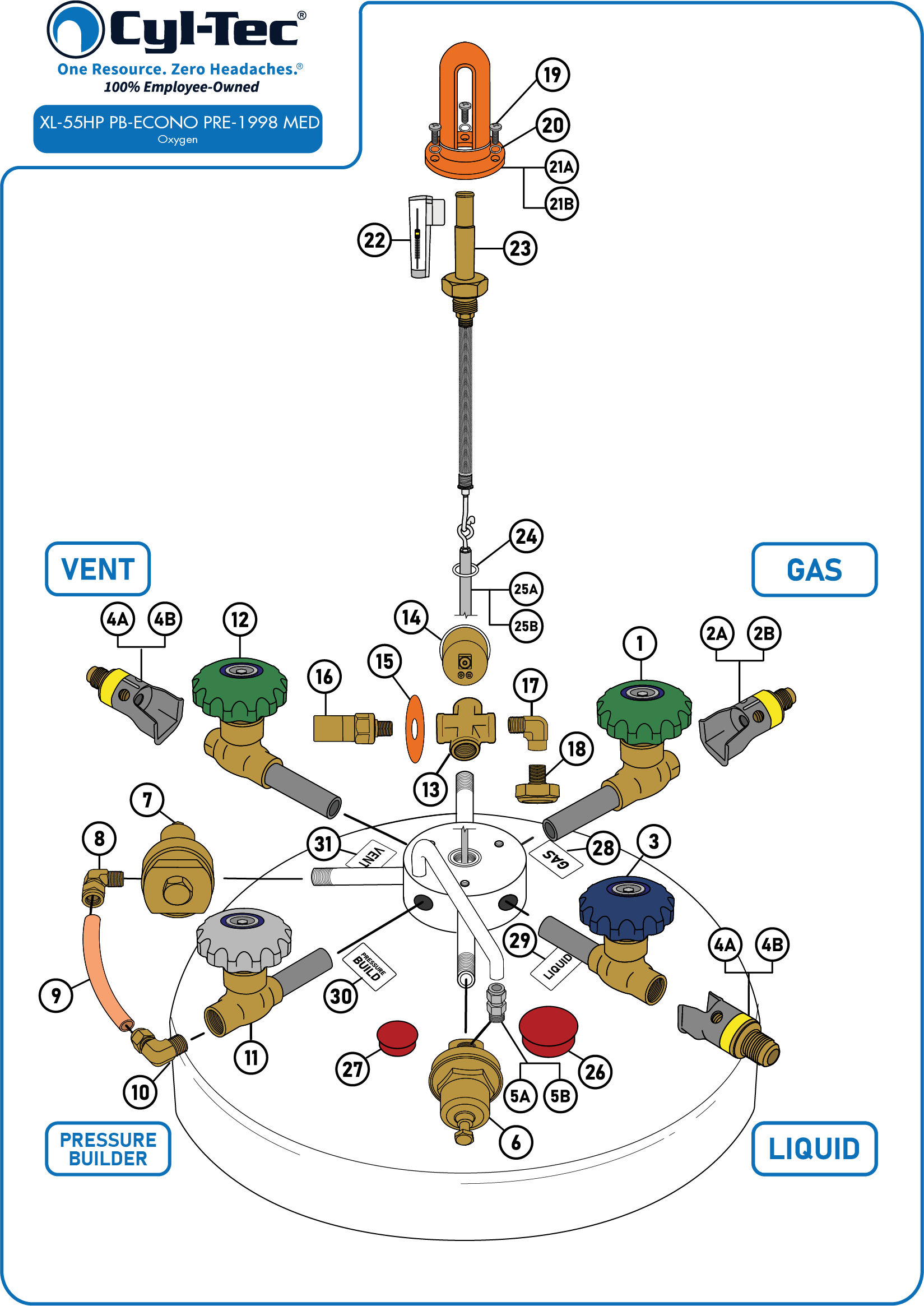

The Exploded Liquid Cylinder Diagrams offer a fast and straightforward method to identify the correct parts that correspond to the specific tank model you are working on!

How To Use:

Begin by choosing the Liquid Cylinder Brand you are working with. Next, select the Model, followed by the Pressure. Finally, choose the Industry & Gas Service relevant to the Liquid Cylinder you need.

Once you have made these selections, scroll down to the diagram or refer to the right-hand table to locate the parts you require.

The interactive diagram shown is a guide, as your tank may have undergone previous repairs that utilized different parts than those displayed.

 Use this diagram in conjunction with your tank to confirm the parts you need.

 Please contact Customer Service with any questions and/or concerns.

Brand

Model

Pressure

Industry & Gas Service

XL-55HP PB-ECONO PRE-1998 MED O
Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel Tamper Proof CGA Connection, CGA 540 Tamper Proof CGA Connection, CGA 540, REGO-Lok Kit Valve, 3/8" FNPT, 2" Tube, Blue Handwheel Tamper Proof CGA Connection, CGA 440 Tamper Proof CGA Connection, CGA 440 Tamper Proof CGA Connection, CGA 440, REGO-Lok Kit Tamper Proof CGA Connection, CGA 440, REGO-Lok Kit Fitting, 3/8″ ODT x 1/4″ MNPT, Stainless Steel 316 Elbow 90, 3/8″ ODT x 1/4″ MNPT, Stainless Steel 316 Regulator Cryo, Econ, 325 psi, ¼" FNPT Regulator Cryo, PB, 300 psi, ¼" FNPT Elbow 90, 3/8" ODT x 1/4" MNPT, Brass Copper Tube, 3/8″ x 7″ Elbow 90, 3/8" ODT x 3/8" MNPT, Brass Valve, 3/8" FNPT, 1" Tube, Silver Handwheel Valve, 3/8" FNPT, 2" Tube, Green Handwheel Cross, 1/4" FNPT, Brass Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50) Pressure Relief Valve, 350 PSI, 1/4" MNPT Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50) Lock Washer, 1/4", Split (Sold in Packs of 50) Sight Gauge Protector, Orange, HP, TW style Sight Gauge Protector, Short, Clear Snap-On Indicator O2, TW style Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, TW Style Gasket for TW Tanks Float Rod, 42-15/16" Float Rod, 33-1/8" Cap Annular Space, 1 3/4″, Polyethylene Cap Pumpout, 1 3/16″, Polyethylene Labels, Liquid Cylinder Valve, Gas, Pack 50 Labels, Liquid Cylinder Valve, Liquid, Pack 50 Labels, Liquid Cylinder Valve, Pressure Builder, Pack 50 Labels, Liquid Cylinder Valve, Vent, Pack 50

Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel

Tamper Proof CGA Connection, CGA 540

Tamper Proof CGA Connection, CGA 540, REGO-Lok Kit

Valve, 3/8" FNPT, 2" Tube, Blue Handwheel

Tamper Proof CGA Connection, CGA 440

Tamper Proof CGA Connection, CGA 440

Tamper Proof CGA Connection, CGA 440, REGO-Lok Kit

Tamper Proof CGA Connection, CGA 440, REGO-Lok Kit

Fitting, 3/8″ ODT x 1/4″ MNPT, Stainless Steel 316

Elbow 90, 3/8″ ODT x 1/4″ MNPT, Stainless Steel 316

Regulator Cryo, Econ, 325 psi, ¼" FNPT

Regulator Cryo, PB, 300 psi, ¼" FNPT

Elbow 90, 3/8" ODT x 1/4" MNPT, Brass

Copper Tube, 3/8″ x 7″

Elbow 90, 3/8" ODT x 3/8" MNPT, Brass

Valve, 3/8" FNPT, 1" Tube, Silver Handwheel

Valve, 3/8" FNPT, 2" Tube, Green Handwheel

Cross, 1/4" FNPT, Brass

Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT

Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50)

Pressure Relief Valve, 350 PSI, 1/4" MNPT

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass

Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

Lock Washer, 1/4", Split (Sold in Packs of 50)

Sight Gauge Protector, Orange, HP, TW style

Sight Gauge Protector, Short, Clear

Snap-On Indicator O2, TW style

Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, TW Style

Gasket for TW Tanks

Float Rod, 42-15/16"

Float Rod, 33-1/8"

Cap Annular Space, 1 3/4″, Polyethylene

Cap Pumpout, 1 3/16″, Polyethylene

Labels, Liquid Cylinder Valve, Gas, Pack 50

Labels, Liquid Cylinder Valve, Liquid, Pack 50

Labels, Liquid Cylinder Valve, Pressure Builder, Pack 50

Labels, Liquid Cylinder Valve, Vent, Pack 50

Part Number
Description
Price
  • 1 CP-VLV-38F-314T-GR Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel
  • 2A CP-TP-CGA540 Tamper Proof CGA Connection, CGA 540
  • 2B CP-TP-CGA540-R Tamper Proof CGA Connection, CGA 540, REGO-Lok Kit
  • 3 CP-VLV-38F-2T-BL Valve, 3/8" FNPT, 2" Tube, Blue Handwheel
  • 4A CP-TP-CGA440 Tamper Proof CGA Connection, CGA 440
  • 4B CP-TP-CGA440-R Tamper Proof CGA Connection, CGA 440, REGO-Lok Kit
  • 5A CP-FIT-38OD-14M-SS316 Fitting, 3/8" ODT x 1/4" MNPT, Stainless Steel 316
  • 5B CP-ELB-90-38OD-14M-SS316 Elbow 90, 3/8" ODT x 1/4" MNPT, Stainless Steel 316
  • 6 CP-ECON-HP-14-R Regulator Cryo, Econ, High Pressure, Spring range 150 - 350 psi, ¼" FNPT, Set point 325 psi, RegO
  • 7 CP-PB-HP-14 Regulator Cryo, PB, High Pressure, Spring range 125 - 350 psi, 1/4" FNPT, Set point 300 psi, RegO
  • 8 CP-ELB-90-38OD-14M-BR Elbow 90, 3/8" ODT x 1/4" MNPT, Brass
  • 9 CP-TUBE-COPPER-38-7 Copper Tube, 3/8″ x 7″
  • 10 CP-ELB-90-38OD-38M-BR Elbow 90, 3/8" ODT x 3/8" MNPT, Brass
  • 11 CP-VLV-38F-1T-SILVER Valve, 3/8" FNPT, 1" Tube, Silver Handwheel
  • 12 CP-VLV-38F-2T-GR Valve, 3/8" FNPT, 2" Tube, Green Handwheel
  • 13 CP-CROSS-14F-BR Cross, 1/4" FNPT, Brass
  • 14 CP-G-CBM-600-14M Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT
  • 15 CP-LCSD-350 Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50)
  • 16 CP-PRV-350-14 Pressure Relief Valve, 350 PSI, 1/4″ MNPT
  • 17 CP-ELB-90-14F-14M-BR Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass
  • 18 CP-SH-HP-14 Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT
  • 19 CP-SCREW-14-20-SS Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)
  • 20 CP-LKWSH-14 Lock Washer, 1/4", Split (Sold in Packs of 50)
  • 21A CP-SGP-OR-HP-NS Sight gauge protector, Orange, HP, Neriki style
  • 21B CP-SGP-SHORT-CL Sight Gauge Protector, Short, Clear
  • 22 CP-SOI-O2-NS Snap-On Indicator O2, Neriki style
  • 23 CP-FLRD-LL-KIT-NS Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, Neriki Style
  • 24 CP-GSK-NS Gasket, Neriki-style
  • 25A CP-FLRD-KIT-NS Float Rod, Neriki Style
  • 25B CP-LEP-KIT-NS Level-Eye Pro Kit, Neriki Style
  • 26 CP-CAP-134 Cap Annular Space, 1 3/4″, Polyethylene
  • 27 CP-CAP-1316 Cap Pumpout, 1 3/16″, Polyethylene
  • 28 CP-LBL-GAS Labels, Liquid Cylinder Valve, Gas, 50 Pack
  • 29 CP-LBL-LIQ Labels, Liquid Cylinder Valve, Liquid, 50 Pack
  • 30 CP-LBL-PB Labels, Liquid Cylinder Valve, Pressure Builder, 50 Pack
  • 31 CP-LBL-VENT Labels, Liquid Cylinder Valve, Vent, 50 Pack
