XL-65HP PB-ECONO PRE-1998 MED NITROUS OXIDE

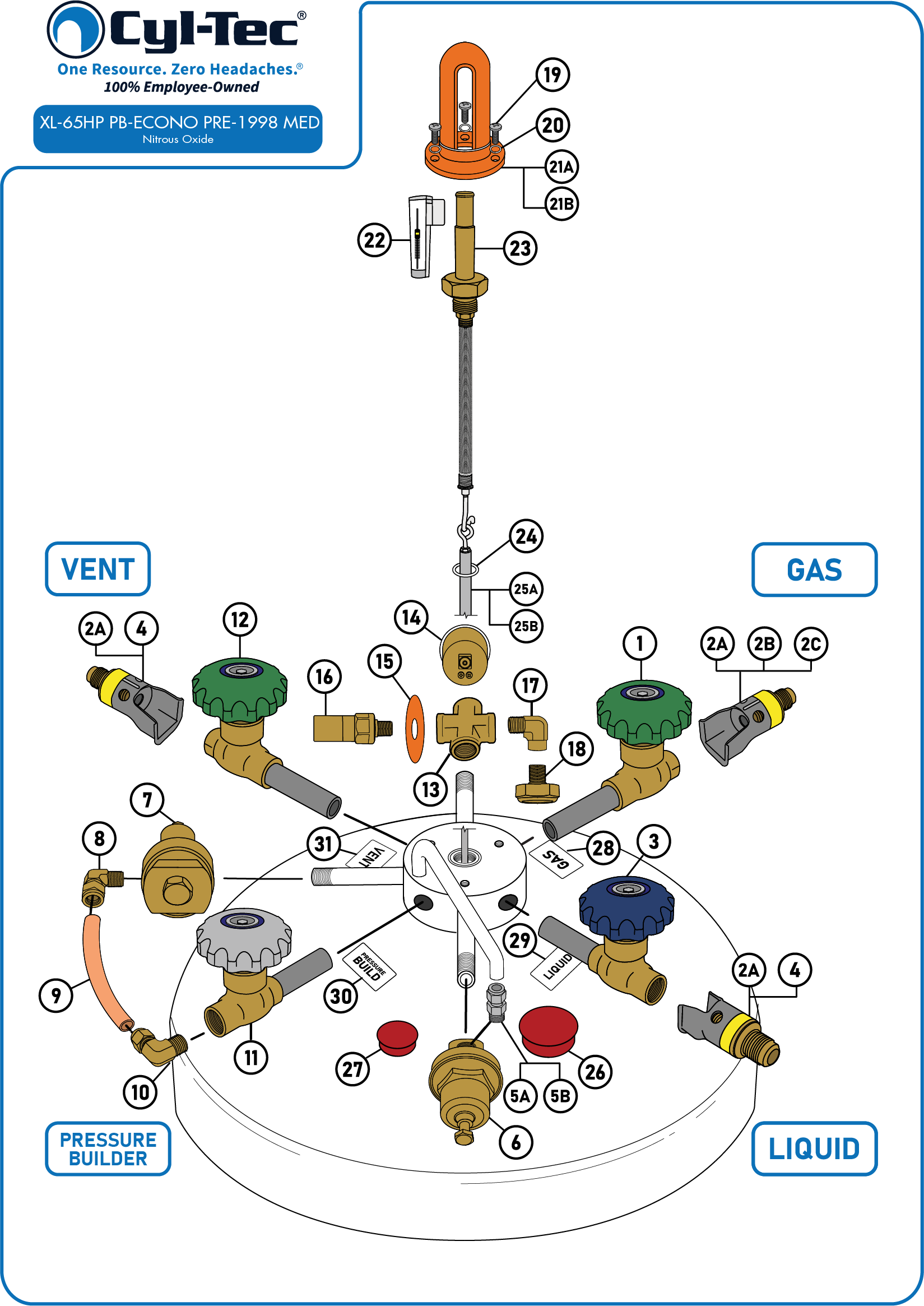

The Exploded Liquid Cylinder Diagrams offer a fast and straightforward method to identify the correct parts that correspond to the specific tank model you are working on!

How To Use:

Begin by choosing the Liquid Cylinder Brand you are working with. Next, select the Model, followed by the Pressure. Finally, choose the Industry & Gas Service relevant to the Liquid Cylinder you need.

Once you have made these selections, scroll down to the diagram or refer to the right-hand table to locate the parts you require.

The interactive diagram shown is a guide, as your tank may have undergone previous repairs that utilized different parts than those displayed.

 Use this diagram in conjunction with your tank to confirm the parts you need.

 Please contact Customer Service with any questions and/or concerns.

Brand

Model

Pressure

Industry & Gas Service

XL-65HP PB-ECONO PRE-1998 MED N2O
Valve, 3/8" FNPT, 2" Tube, Green Handwheel Tamper Proof CGA Connection, CGA 624 Tamper Proof CGA Connection, CGA 624 Valve, 3/8" FNPT, 2" Tube, Blue Handwheel Tamper Proof CGA Connection, CGA 624 Tamper Proof CGA Connection, CGA 295 Tamper Proof CGA Connection, CGA 295, REGO-Lok Kit Tamper Proof CGA Connection, CGA 326 Fitting, 3/8″ ODT x 1/4″ MNPT, Stainless Steel 316 Elbow 90, 3/8″ ODT x 1/4″ MNPT, Stainless Steel 316 Regulator Cryo, Econ, 325 psi, ¼" FNPT Regulator Cryo, PB, 300 psi, ¼" FNPT Elbow 90, 3/8" ODT x 1/4" MNPT, Brass Copper Tube, 3/8″ x 7″ Elbow 90, 3/8" ODT x 3/8" MNPT, Brass Valve, 3/8" FNPT, 1" Tube, Silver Handwheel Valve, 3/8" FNPT, 2" Tube, Green Handwheel Cross, 1/4" FNPT, Brass Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50) Pressure Relief Valve, 350 PSI, 1/4" MNPT Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50) Lock Washer, 1/4", Split (Sold in Packs of 50) Sight Gauge Protector, Orange, HP, TW style Sight Gauge Protector, Short, Clear Snap-On Indicator N2O, TW style Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, TW Style Gasket for TW Tanks Float Rod, 42-15/16" Float Rod, 33-1/8" Cap Annular Space, 1 3/4″, Polyethylene Cap Pumpout, 1 3/16″, Polyethylene Labels, Liquid Cylinder Valve, Gas, Pack 50 Labels, Liquid Cylinder Valve, Liquid, Pack 50 Labels, Liquid Cylinder Valve, Pressure Builder, Pack 50 Labels, Liquid Cylinder Valve, Vent, Pack 50 Tamper Proof CGA Connection, CGA 326

Valve, 3/8" FNPT, 2" Tube, Green Handwheel

Part Information

Part #
CP-VLV-38F-314T-GR

Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel


Add to quote

Tamper Proof CGA Connection, CGA 624

Part Information

Part #
CP-TP-CGA624

Tamper Proof CGA Connection, CGA 624


Add to quote

Tamper Proof CGA Connection, CGA 624

Part Information

Part #
CP-TP-CGA624

Tamper Proof CGA Connection, CGA 624


Add to quote

Valve, 3/8" FNPT, 2" Tube, Blue Handwheel

Part Information

Part #
CP-VLV-38F-2T-BL

Valve, 3/8" FNPT, 2" Tube, Blue Handwheel


Add to quote

Tamper Proof CGA Connection, CGA 624

Part Information

Part #
CP-TP-CGA624

Tamper Proof CGA Connection, CGA 624


Add to quote

Tamper Proof CGA Connection, CGA 295

Part Information

Part #
CP-TP-CGA295

Tamper Proof CGA Connection, CGA 295


Add to quote

Tamper Proof CGA Connection, CGA 295, REGO-Lok Kit

Part Information

Part # CP-TP-CGA295-R

Tamper Proof CGA Connection, CGA 295, REGO-Lok Kit

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Tamper Proof CGA Connection, CGA 326

Part Information

Part #
CP-TP-CGA326

Tamper Proof CGA Connection, CGA 326


Add to quote

Fitting, 3/8″ ODT x 1/4″ MNPT, Stainless Steel 316

Part Information

No Image

Part # CP-FIT-38OD-14M-SS316

Fitting, 3/8" ODT x 1/4" MNPT, Stainless Steel 316

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Elbow 90, 3/8″ ODT x 1/4″ MNPT, Stainless Steel 316

Part Information

No Image

Part # CP-ELB-90-38OD-14M-SS316

Elbow 90, 3/8" ODT x 1/4" MNPT, Stainless Steel 316

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Regulator Cryo, Econ, 325 psi, ¼" FNPT

Part Information

Part #
CP-ECON-HP-14-R

Regulator Cryo, Econ, High Pressure, Spring range 150 - 350 psi, ¼" FNPT, Set point 325 psi, RegO


Add to quote

Regulator Cryo, PB, 300 psi, ¼" FNPT

Part Information

Part #
CP-PB-HP-14

Regulator Cryo, PB, High Pressure, Spring range 125 - 350 psi, 1/4" FNPT, Set point 300 psi, RegO


Add to quote

Elbow 90, 3/8" ODT x 1/4" MNPT, Brass

Part Information

Part #
CP-ELB-90-38OD-14M-BR

Elbow 90, 3/8" ODT x 1/4" MNPT, Brass


Add to quote

Copper Tube, 3/8″ x 7″

Part Information

Part #
CP-TUBE-COPPER-38-7

Copper Tube, 3/8″ x 7″


Add to quote

Elbow 90, 3/8" ODT x 3/8" MNPT, Brass

Part Information

Part #
CP-ELB-90-38OD-38M-BR

Elbow 90, 3/8" ODT x 3/8" MNPT, Brass


Add to quote

Valve, 3/8" FNPT, 1" Tube, Silver Handwheel

Part Information

Part #
CP-VLV-38F-1T-SILVER

Valve, 3/8" FNPT, 1" Tube, Silver Handwheel


Add to quote

Valve, 3/8" FNPT, 2" Tube, Green Handwheel

Part Information

Part #
CP-VLV-38F-2T-GR

Valve, 3/8" FNPT, 2" Tube, Green Handwheel


Add to quote

Cross, 1/4" FNPT, Brass

Part Information

Part #
CP-CROSS-14F-BR

Cross, 1/4" FNPT, Brass


Add to quote

Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT

Part Information

Part #
CP-G-CBM-600-14M

Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT


Add to quote

Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50)

Part Information

Part #
CP-LCSD-350

Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50)


Add to quote

Pressure Relief Valve, 350 PSI, 1/4" MNPT

Part Information

Part #
CP-PRV-350-14

Pressure Relief Valve, 350 PSI, 1/4″ MNPT


Add to quote

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass

Part Information

Part #
CP-ELB-90-14F-14M-BR

Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass


Add to quote

Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT

Part Information

Part #
CP-SH-HP-14

Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT


Add to quote

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

Part Information

No Image

Part # CP-SCREW-14-20-SS

Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Lock Washer, 1/4", Split (Sold in Packs of 50)

Part Information

No Image

Part # CP-LKWSH-14

Lock Washer, 1/4", Split (Sold in Packs of 50)

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Sight Gauge Protector, Orange, HP, TW style

Part Information

Part #
CP-SGP-OR-HP-NS

Sight gauge protector, Orange, HP, Neriki style


Add to quote

Sight Gauge Protector, Short, Clear

Part Information

Part #
CP-SGP-SHORT-CL

Sight Gauge Protector, Short, Clear


Add to quote

Snap-On Indicator N2O, TW style

Part Information

No Image

Part # CP-SOI-N2O-NS

Snap-On Indicator N2O, Neriki style

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, TW Style

Part Information

Part # CP-FLRD-LL-KIT-NS

Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, Neriki Style

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Gasket for TW Tanks

Part Information

Part #
CP-GSK-NS

Gasket, Neriki-style


Add to quote

Float Rod, 42-15/16"

Part Information

No Image

Part # CP-FLRD-KIT-NS

Float Rod, Neriki Style

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Float Rod, 33-1/8"

Part Information

Part # CP-LEP-KIT-NS

Level-Eye Pro Kit, Neriki Style

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Cap Annular Space, 1 3/4″, Polyethylene

Part Information

Part #
CP-CAP-134

Cap Annular Space, 1 3/4″, Polyethylene


Add to quote

Cap Pumpout, 1 3/16″, Polyethylene

Part Information

Part #
CP-CAP-1316

Cap Pumpout, 1 3/16″, Polyethylene


Add to quote

Labels, Liquid Cylinder Valve, Gas, Pack 50

Part Information

No Image

Part # CP-LBL-GAS

Labels, Liquid Cylinder Valve, Gas, 50 Pack

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Labels, Liquid Cylinder Valve, Liquid, Pack 50

Part Information

No Image

Part # CP-LBL-LIQ

Labels, Liquid Cylinder Valve, Liquid, 50 Pack

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Labels, Liquid Cylinder Valve, Pressure Builder, Pack 50

Part Information

No Image

Part # CP-LBL-PB

Labels, Liquid Cylinder Valve, Pressure Builder, 50 Pack

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Labels, Liquid Cylinder Valve, Vent, Pack 50

Part Information

No Image

Part # CP-LBL-VENT

Labels, Liquid Cylinder Valve, Vent, 50 Pack

We are not currently stocking this part.

If you would like us to stock it in the future, please contact us.

Tamper Proof CGA Connection, CGA 326

Part Information

Part #
CP-TP-CGA326

Tamper Proof CGA Connection, CGA 326


Add to quote

Part Number
Description
Price
  • 1 CP-VLV-38F-314T-GR Valve, 3/8" FNPT, 3.25" Tube, Green Handwheel
  • 2A CP-TP-CGA624 Tamper Proof CGA Connection, CGA 624
  • 2B CP-TP-CGA295 Tamper Proof CGA Connection, CGA 295
  • 2C CP-TP-CGA295-R Tamper Proof CGA Connection, CGA 295, REGO-Lok Kit
  • 3 CP-VLV-38F-2T-BL Valve, 3/8" FNPT, 2" Tube, Blue Handwheel
  • 4 CP-TP-CGA326 Tamper Proof CGA Connection, CGA 326
  • 5A CP-FIT-38OD-14M-SS316 Fitting, 3/8" ODT x 1/4" MNPT, Stainless Steel 316
  • 5B CP-ELB-90-38OD-14M-SS316 Elbow 90, 3/8" ODT x 1/4" MNPT, Stainless Steel 316
  • 6 CP-ECON-HP-14-R Regulator Cryo, Econ, High Pressure, Spring range 150 - 350 psi, ¼" FNPT, Set point 325 psi, RegO
  • 7 CP-PB-HP-14 Regulator Cryo, PB, High Pressure, Spring range 125 - 350 psi, 1/4" FNPT, Set point 300 psi, RegO
  • 8 CP-ELB-90-38OD-14M-BR Elbow 90, 3/8" ODT x 1/4" MNPT, Brass
  • 9 CP-TUBE-COPPER-38-7 Copper Tube, 3/8″ x 7″
  • 10 CP-ELB-90-38OD-38M-BR Elbow 90, 3/8" ODT x 3/8" MNPT, Brass
  • 11 CP-VLV-38F-1T-SILVER Valve, 3/8" FNPT, 1" Tube, Silver Handwheel
  • 12 CP-VLV-38F-2T-GR Valve, 3/8" FNPT, 2" Tube, Green Handwheel
  • 13 CP-CROSS-14F-BR Cross, 1/4" FNPT, Brass
  • 14 CP-G-CBM-600-14M Gauge, Center Back Mount, 2", 600 psi, 1/4" MNPT
  • 15 CP-LCSD-350 Liquid Cylinder Safety Disk, 350 psi (Sold in Packs of 50)
  • 16 CP-PRV-350-14 Pressure Relief Valve, 350 PSI, 1/4″ MNPT
  • 17 CP-ELB-90-14F-14M-BR Elbow 90, 1/4" FNPT x 1/4" MNPT, Brass
  • 18 CP-SH-HP-14 Safety Head Burst Disc, Range 480-585 PSIG, 1/4" MNPT
  • 19 CP-SCREW-14-20-SS Screw, 1/4"- 20 x 5/8" Phillips, Stainless Steel (Sold in Packs of 50)
  • 20 CP-LKWSH-14 Lock Washer, 1/4", Split (Sold in Packs of 50)
  • 21A CP-SGP-OR-HP-NS Sight gauge protector, Orange, HP, Neriki style
  • 21B CP-SGP-SHORT-CL Sight Gauge Protector, Short, Clear
  • 22 CP-SOI-N2O-NS Snap-On Indicator N2O, Neriki style
  • 23 CP-FLRD-LL-KIT-NS Float Rod Liquid Level Kit, Brass Indicator, Spring, and Threaded Eyelet, Neriki Style
  • 24 CP-GSK-NS Gasket, Neriki-style
  • 25A CP-FLRD-KIT-NS Float Rod, Neriki Style
  • 25B CP-LEP-KIT-NS Level-Eye Pro Kit, Neriki Style
  • 26 CP-CAP-134 Cap Annular Space, 1 3/4″, Polyethylene
  • 27 CP-CAP-1316 Cap Pumpout, 1 3/16″, Polyethylene
  • 28 CP-LBL-GAS Labels, Liquid Cylinder Valve, Gas, 50 Pack
  • 29 CP-LBL-LIQ Labels, Liquid Cylinder Valve, Liquid, 50 Pack
  • 30 CP-LBL-PB Labels, Liquid Cylinder Valve, Pressure Builder, 50 Pack
  • 31 CP-LBL-VENT Labels, Liquid Cylinder Valve, Vent, 50 Pack
